M/T Model

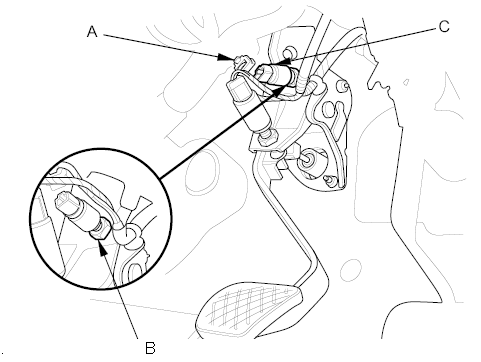

  1. Disconnect the clutch pedal position switch A connector (A).
    2. Fig 1: View Of Continuity Table
    G00492178Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Loosen the locknut (B), then remove the clutch pedal position switch A (C).
  3. Install the clutch pedal position switch A and adjust the pedal height (see Clutch Pedal, Clutch Pedal Position Switch A, and Clutch Pedal Position under CLUTCH
