Component Location Index

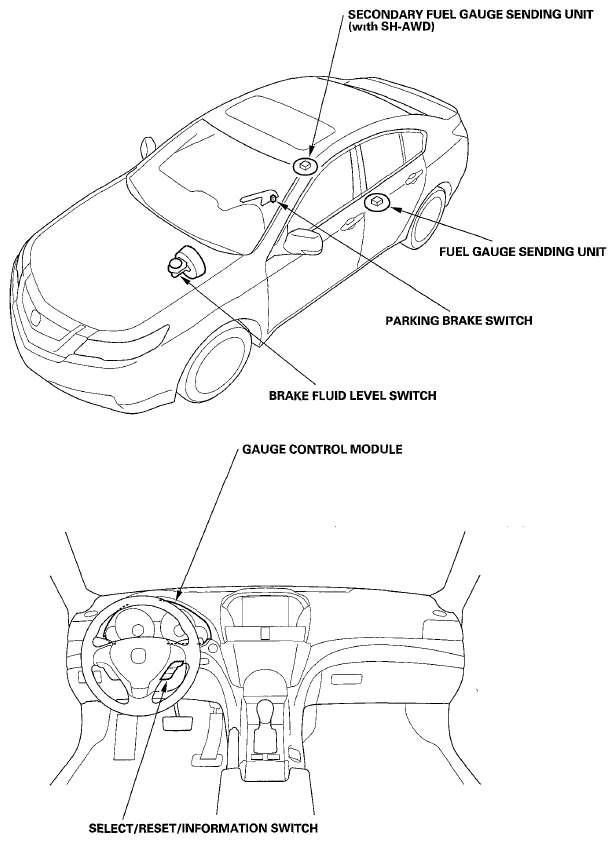

Fig 1: Identifying Gauge Component Locations (1 Of 2)
G05989061Courtesy of AMERICAN HONDA MOTOR CO., INC.

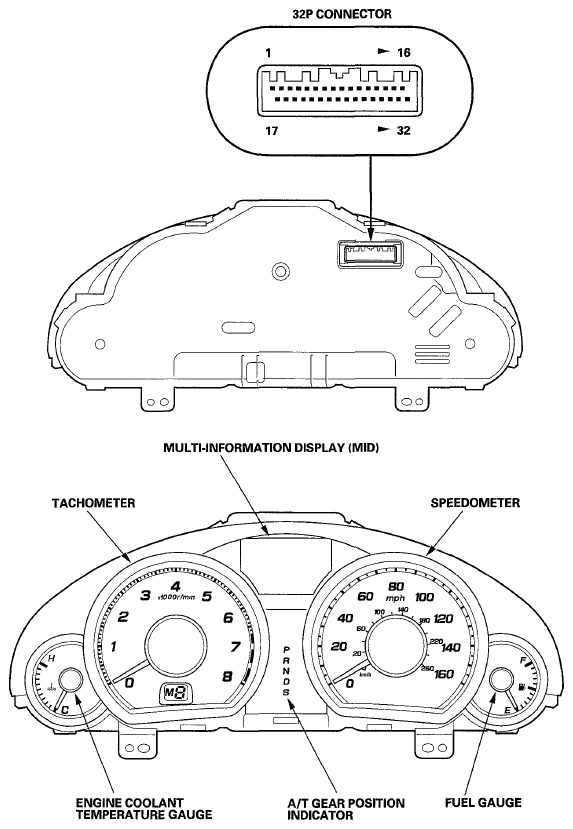

Fig 2: Identifying Gauge Component Locations (2 Of 2)
G05989062Courtesy of AMERICAN HONDA MOTOR CO., INC.
