M/T: Keyless Access

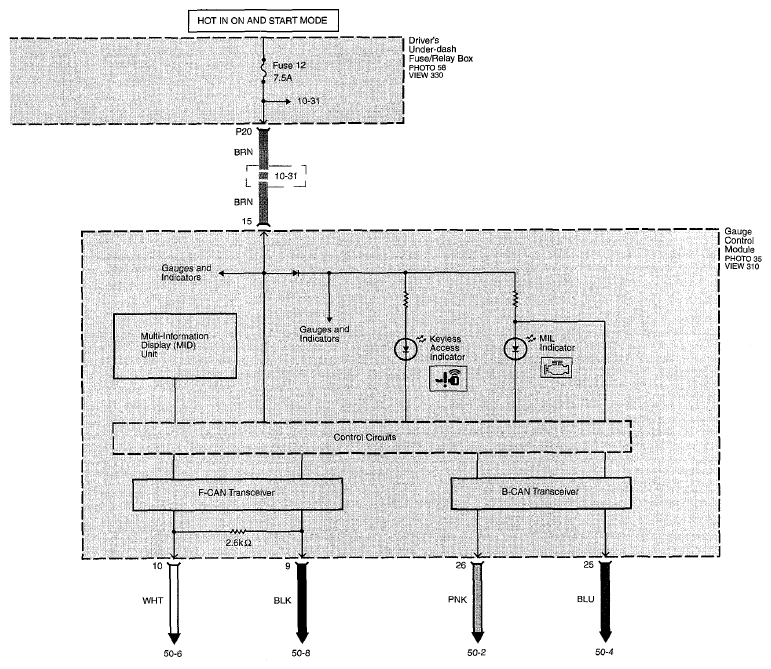

Fig 1: Starting System Circuit Diagram - M/T: Keyless Access (Page 21-14)

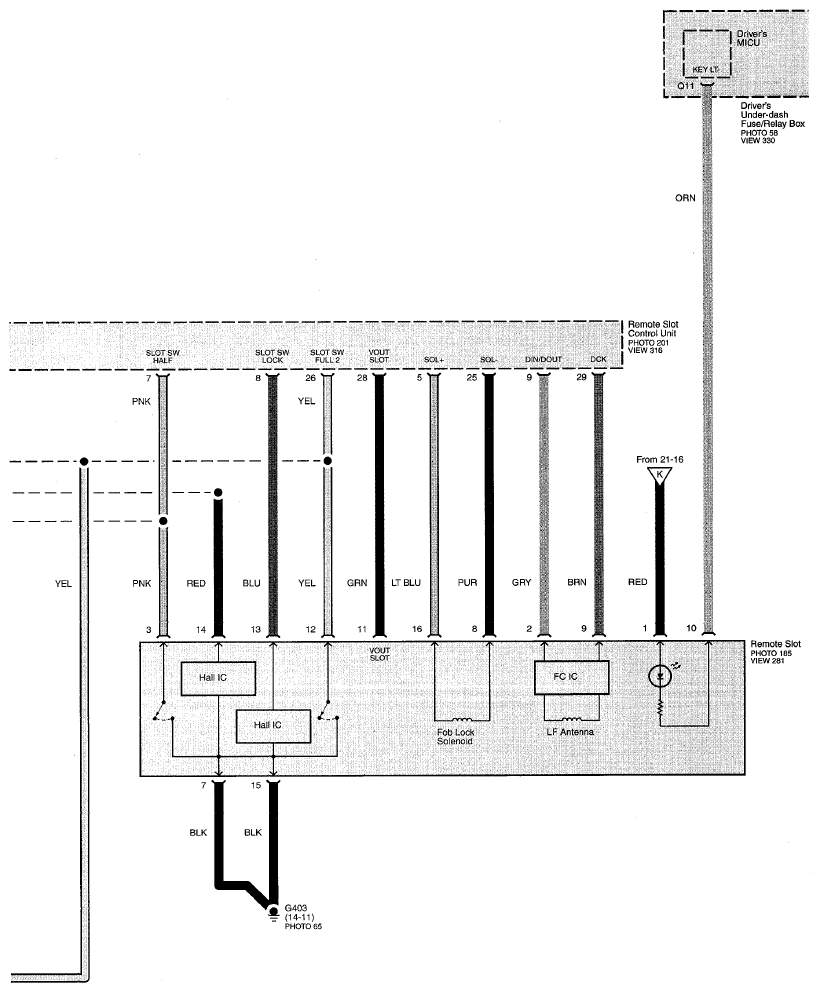

Fig 2: Starting System Circuit Diagram - M/T: Keyless Access (Page 21-15)

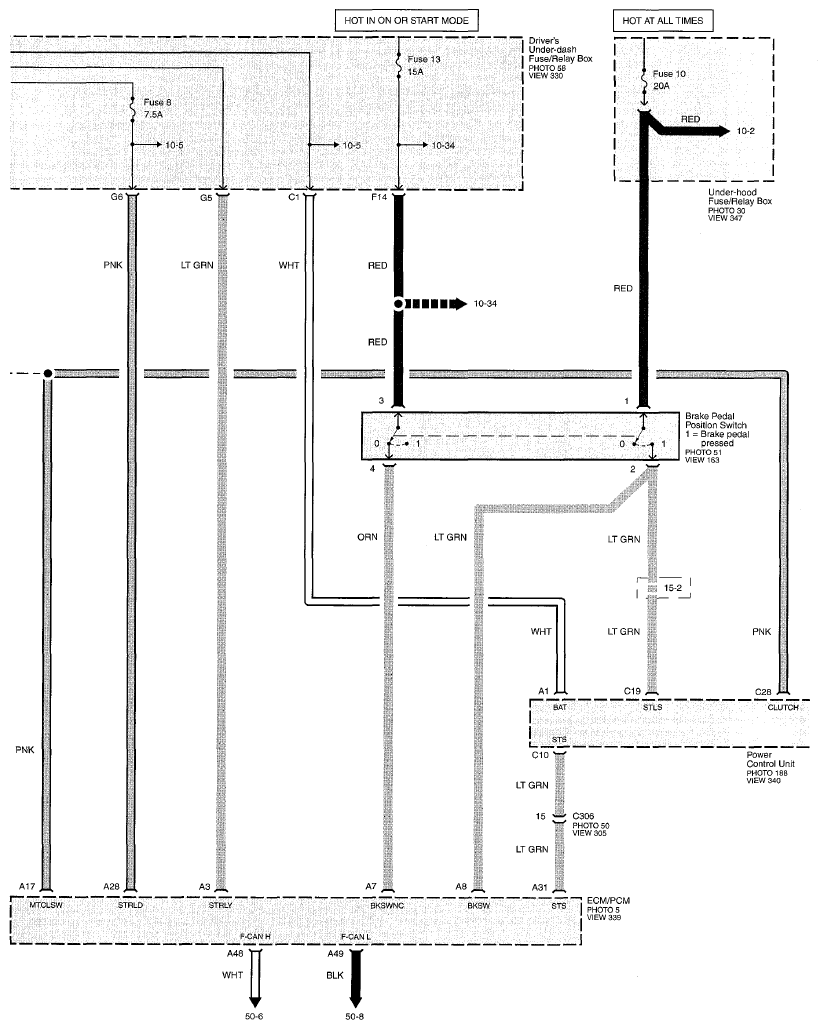

Fig 3: Starting System Circuit Diagram - M/T: Keyless Access (Page 21-16)

Fig 4: Starting System Circuit Diagram - M/T: Keyless Access (Page 21-17)

Fig 5: Starting System Circuit Diagram - M/T: Keyless Access (Page 21-18)

Fig 6: Starting System Circuit Diagram - M/T: Keyless Access (Page 21-19)

Fig 7: Starting System Circuit Diagram - M/T: Keyless Access (Page 21-20)

Fig 8: Starting System Circuit Diagram - M/T: Keyless Access (Page 21-21)

Fig 9: Starting System Circuit Diagram - M/T: Keyless Access (Page 21-22)

Fig 10: Starting System Circuit Diagram - M/T: Keyless Access (Page 21-23)

Fig 11: Starting System Circuit Diagram - M/T: Keyless Access (Page 21-24)
