Seat Heaters: Notes

NOTE: For connector or component location "PHOTO", see OEM COMPONENT LOCATION . For connector "VIEW", see OEM CONNECTOR END VIEWS .

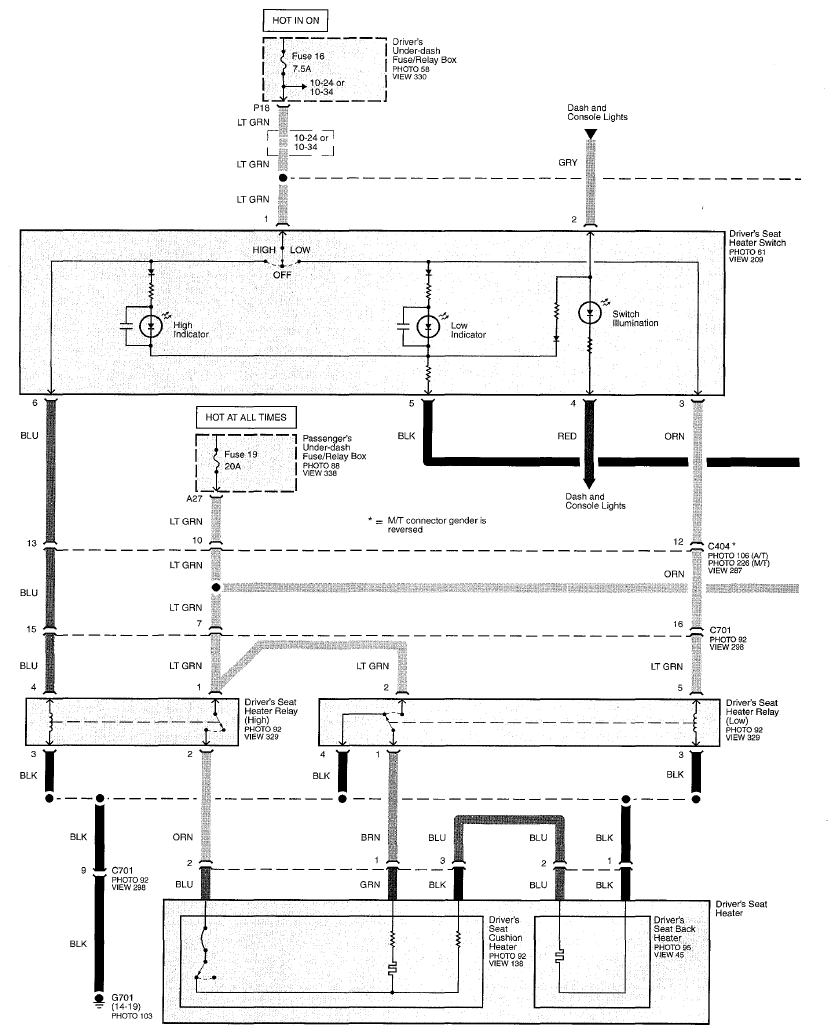

Fig 1: Seat Heaters Circuit Diagram (Page 147)
G07755450

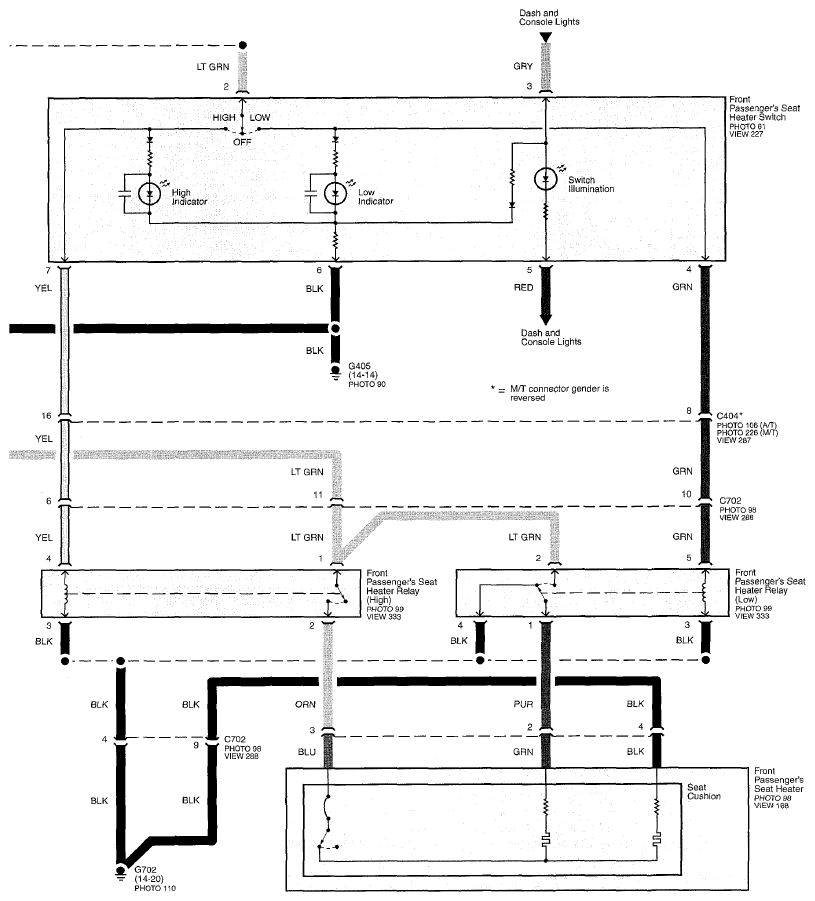

Fig 2: Seat Heaters Circuit Diagram (Page 147-1)
G07755451
