System Diagram

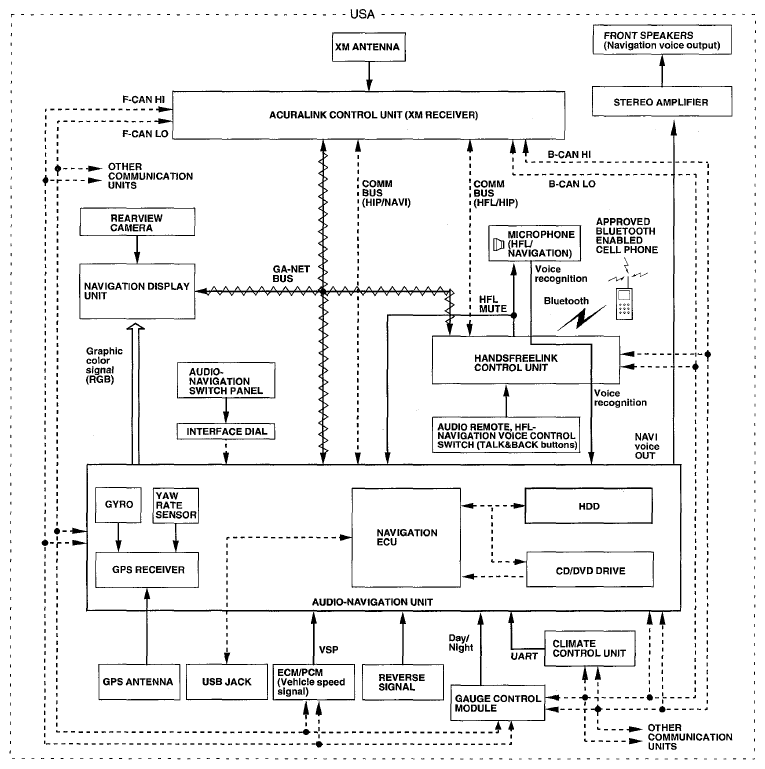

Fig 1: Navigation System Diagram (Page 156-15)

G07755534

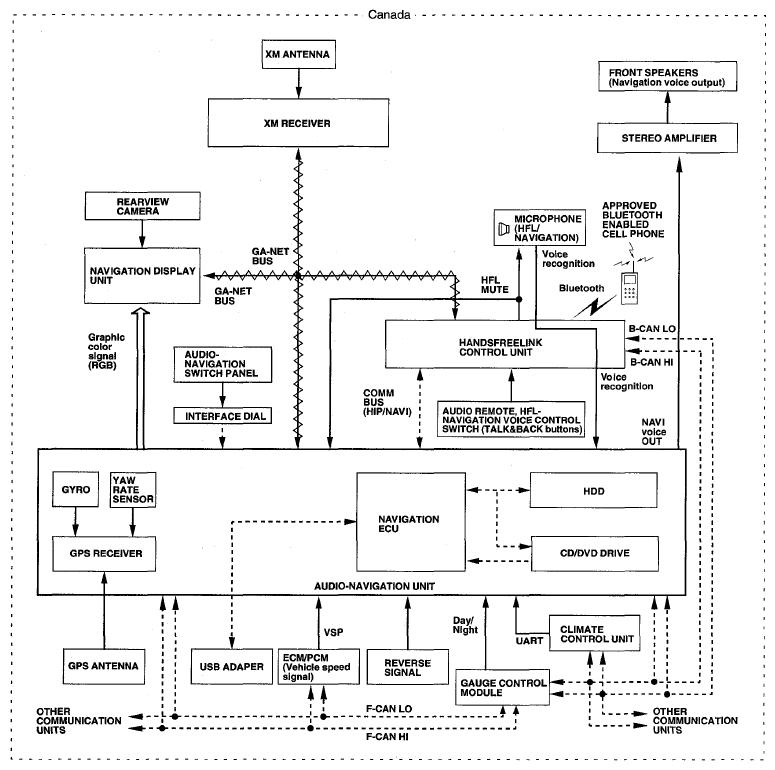

Fig 2: Navigation System Diagram (Page 156-16)

G07755535
