K-line Communication Line

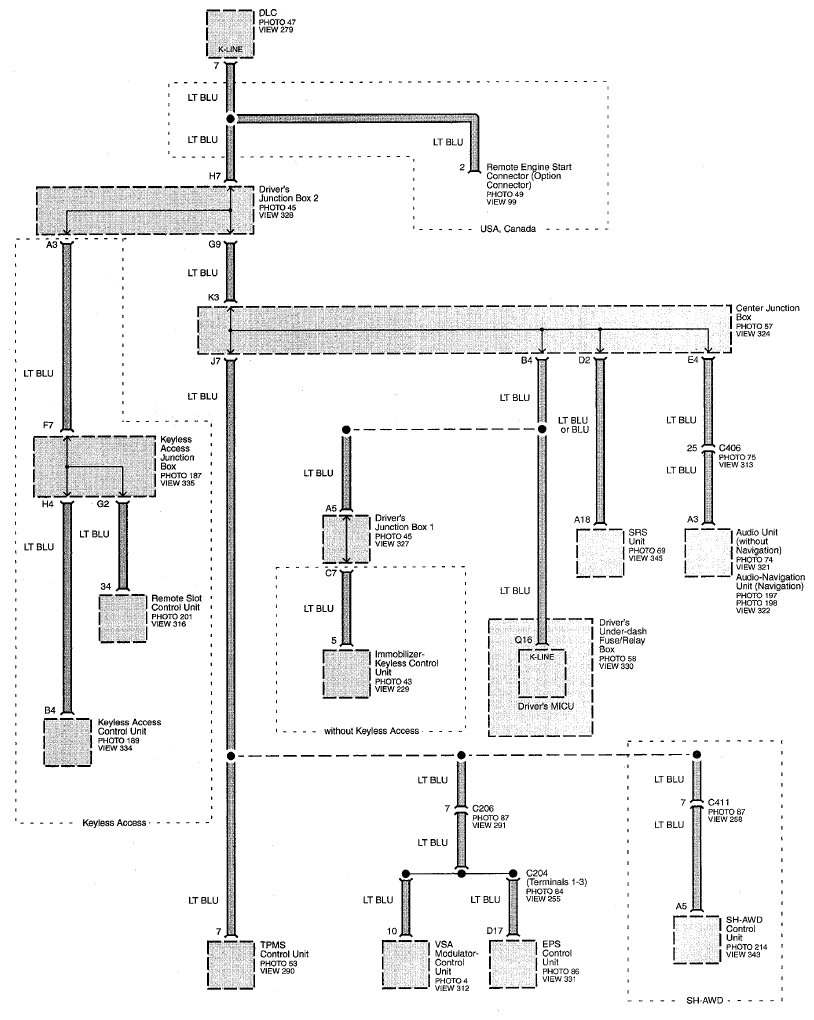

Fig 1: Multiplex Integrated Control System Circuit Diagram - K-line Communication Line (Page 50-10)

G07755323
