Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM Circuit Diagrams
>>
Multiplex Integrated Control System
>>
GA-NET Audio (Navigation with AcuraLink)
GA-NET Audio (Navigation with AcuraLink)

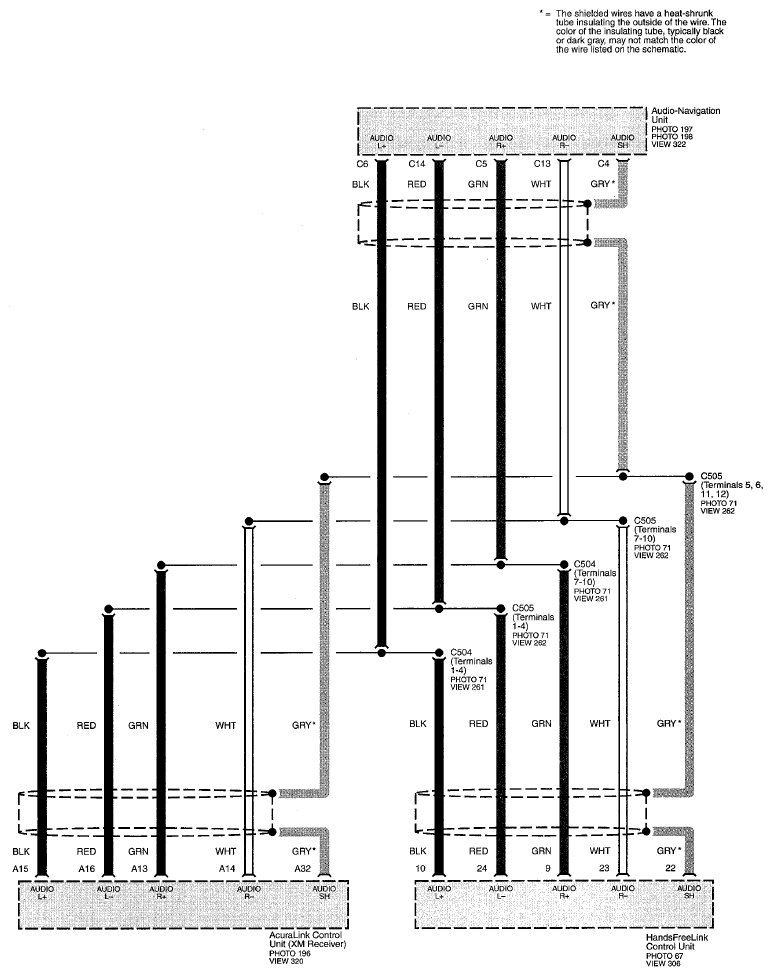

Fig 1: Multiplex Integrated Control System Circuit Diagram - GA-NET Audio (Navigation With AcuraLink) (Page 50-19)
