F-CAN Communication Line (Low)

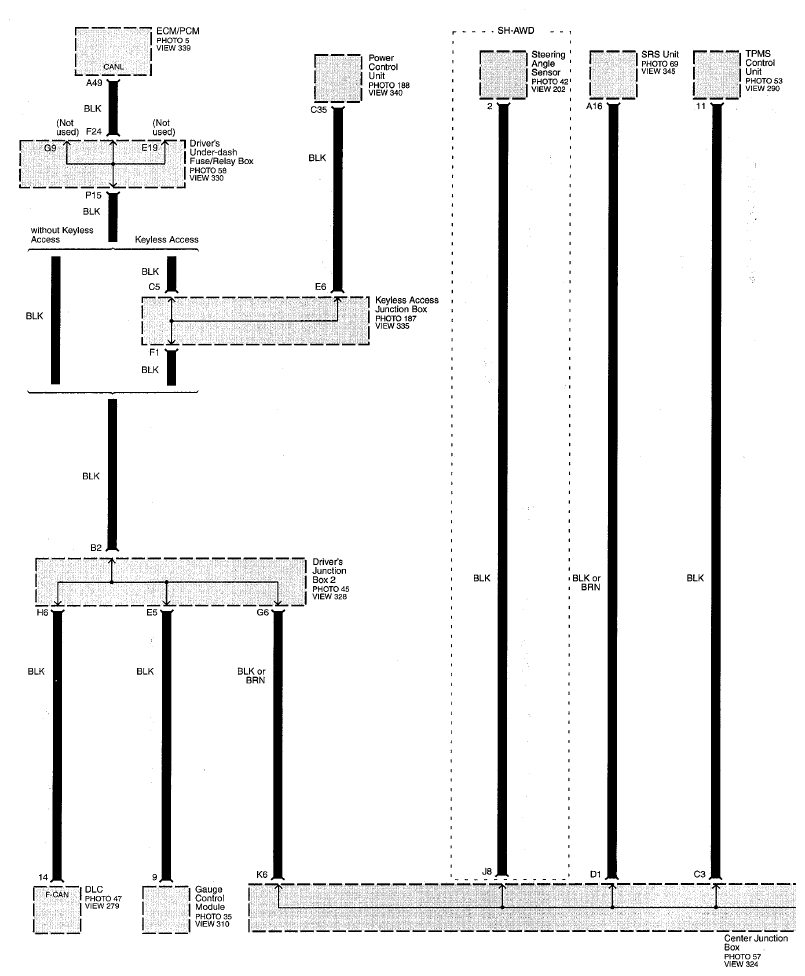

Fig 1: Multiplex Integrated Control System Circuit Diagram - F-CAN Communication Line (Low) (Page 50-8)
G07755321

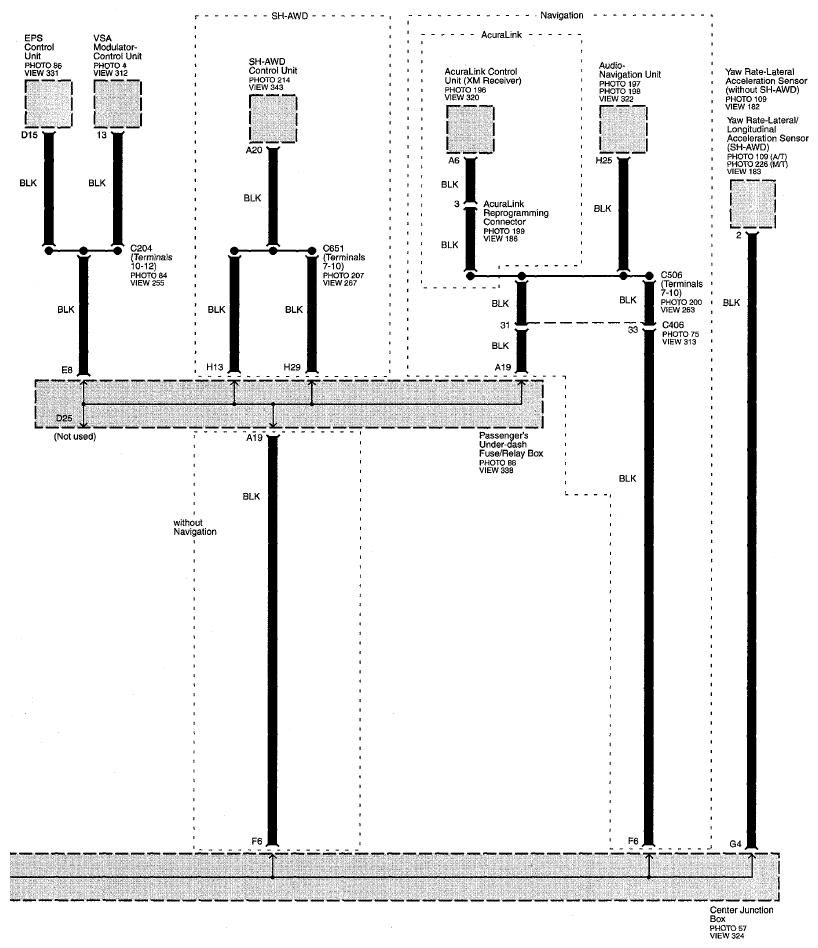

Fig 2: Multiplex Integrated Control System Circuit Diagram - F-CAN Communication Line (Low) (Page 50-9)
G07755322
