F-CAN Communication Line (High)

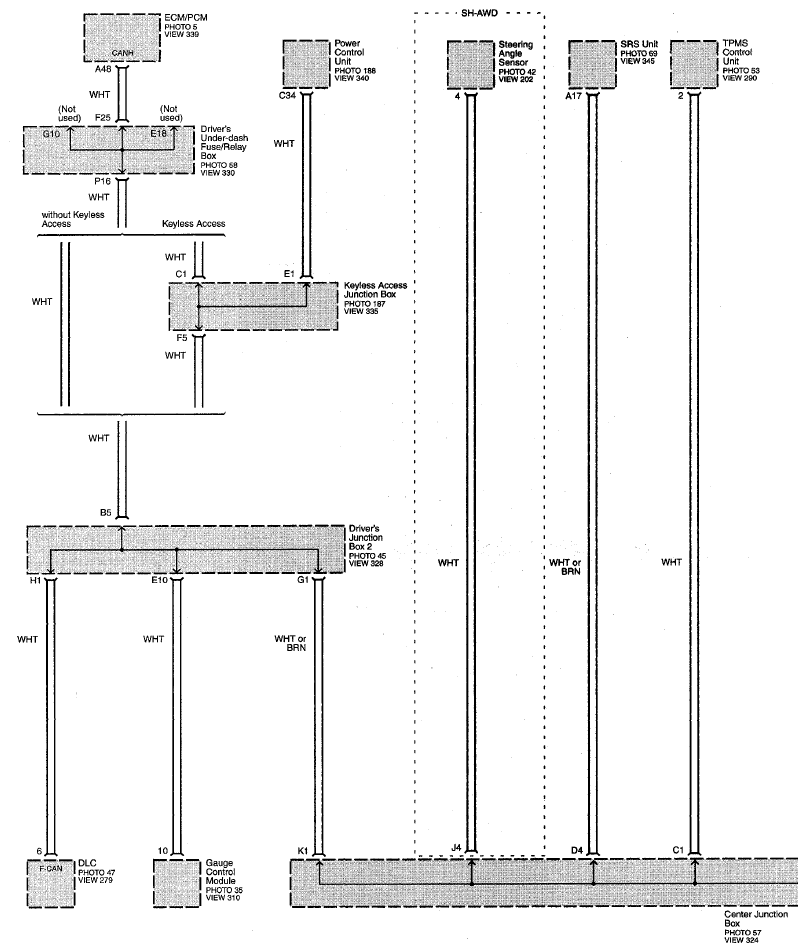

Fig 1: Multiplex Integrated Control System Circuit Diagram - F-CAN Communication Line (High) (Page 50-6)
G07755319

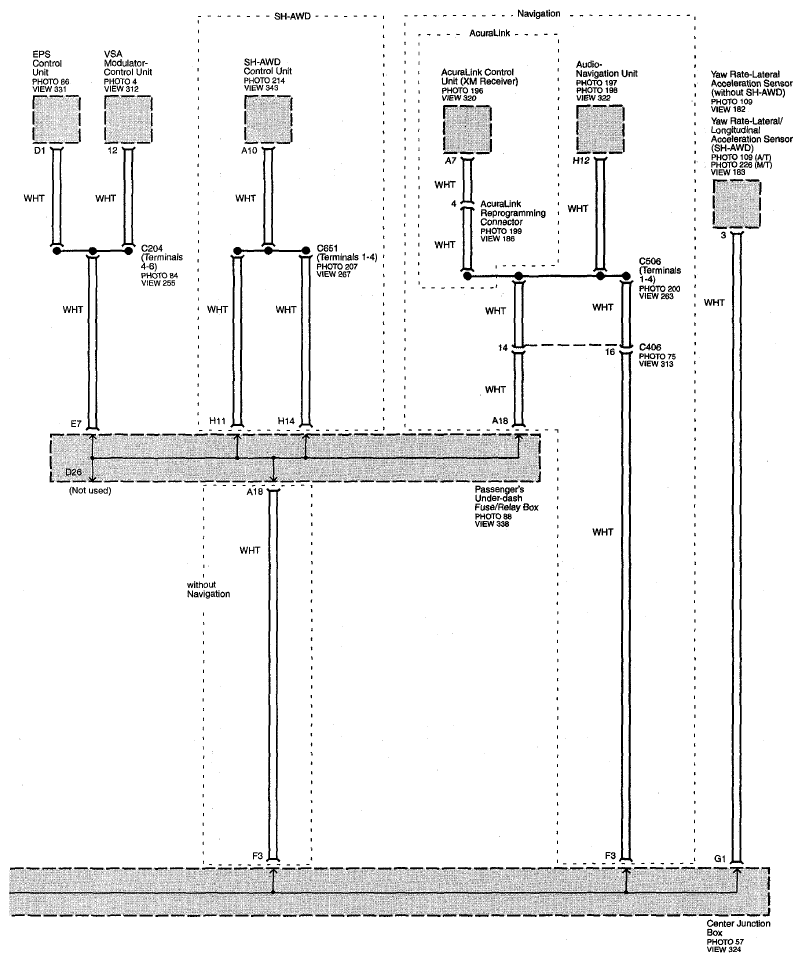

Fig 2: Multiplex Integrated Control System Circuit Diagram - F-CAN Communication Line (High) (Page 50-7)
G07755320
