Keyless Access

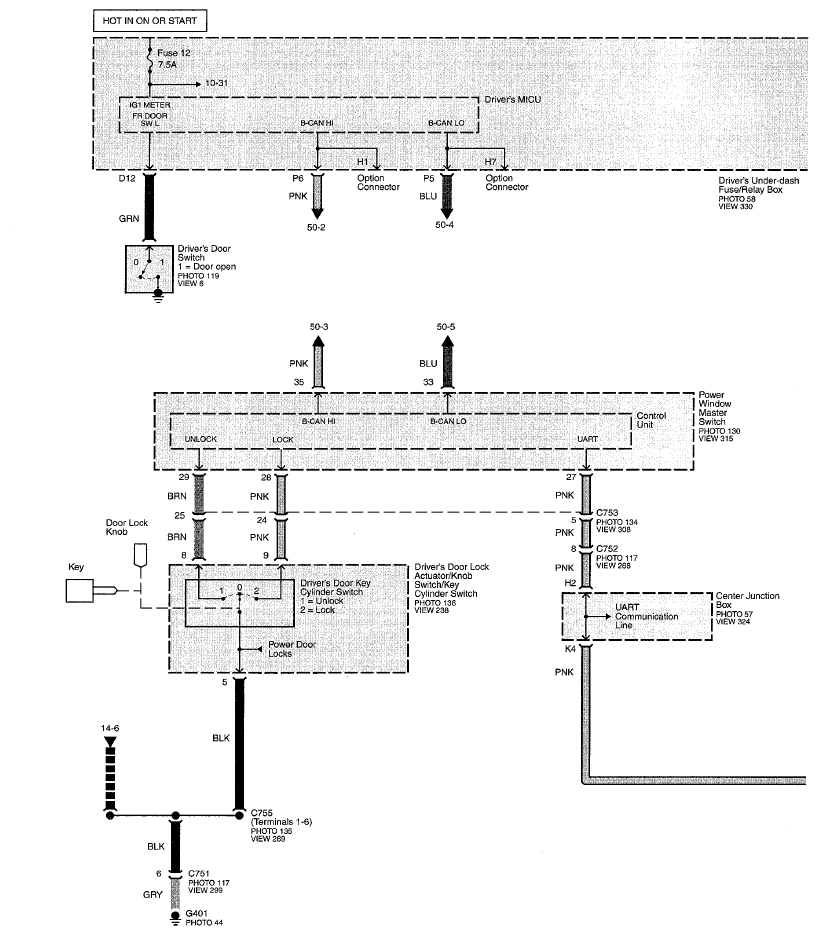

Fig 1: Moonroof Circuit Diagram - Keyless Access (Page 122)

G07755400

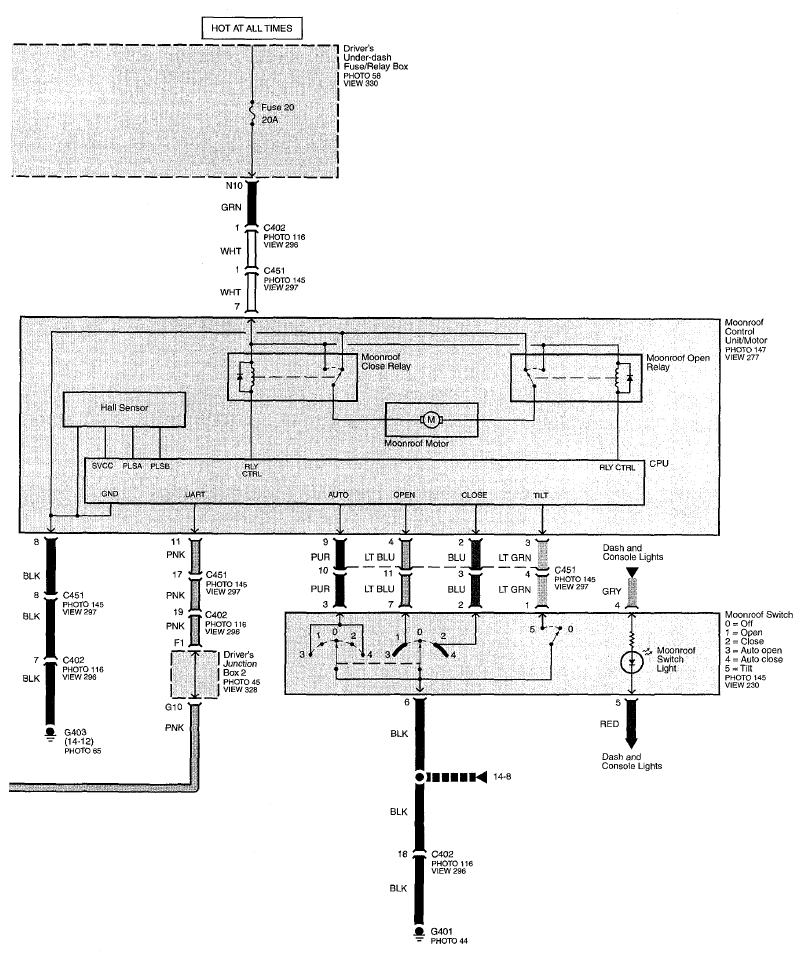

Fig 2: Moonroof Circuit Diagram - Keyless Access (Page 122-1)

G07755401

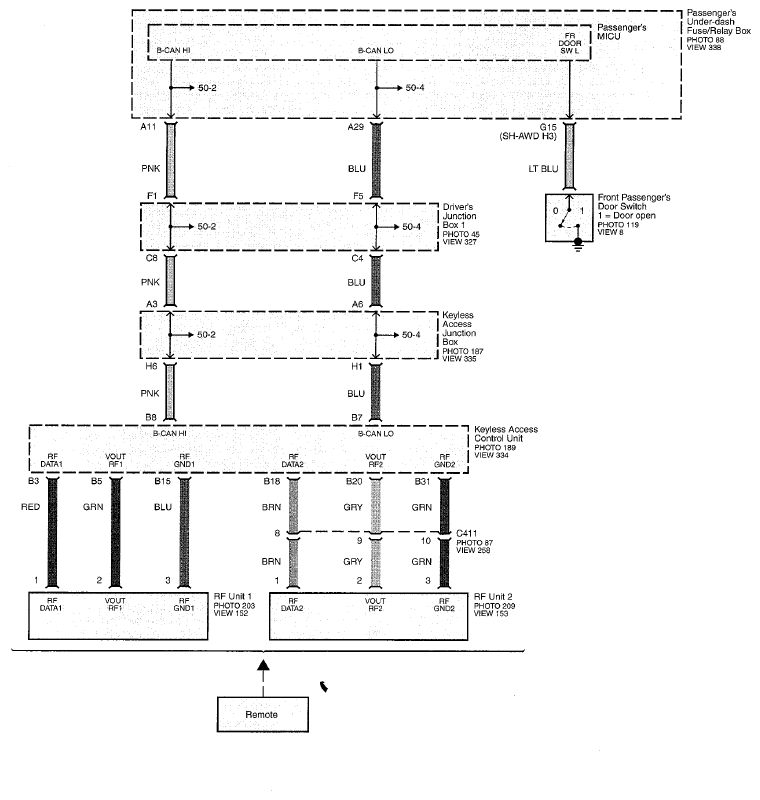

Fig 3: Moonroof Circuit Diagram - Keyless Access (Page 122-2)

G07755402
