A/T: Keyless Access

Fig 1: Interlock System Circuit Diagram - A/T: Without Keyless Access (Page 138-2)

G07755435

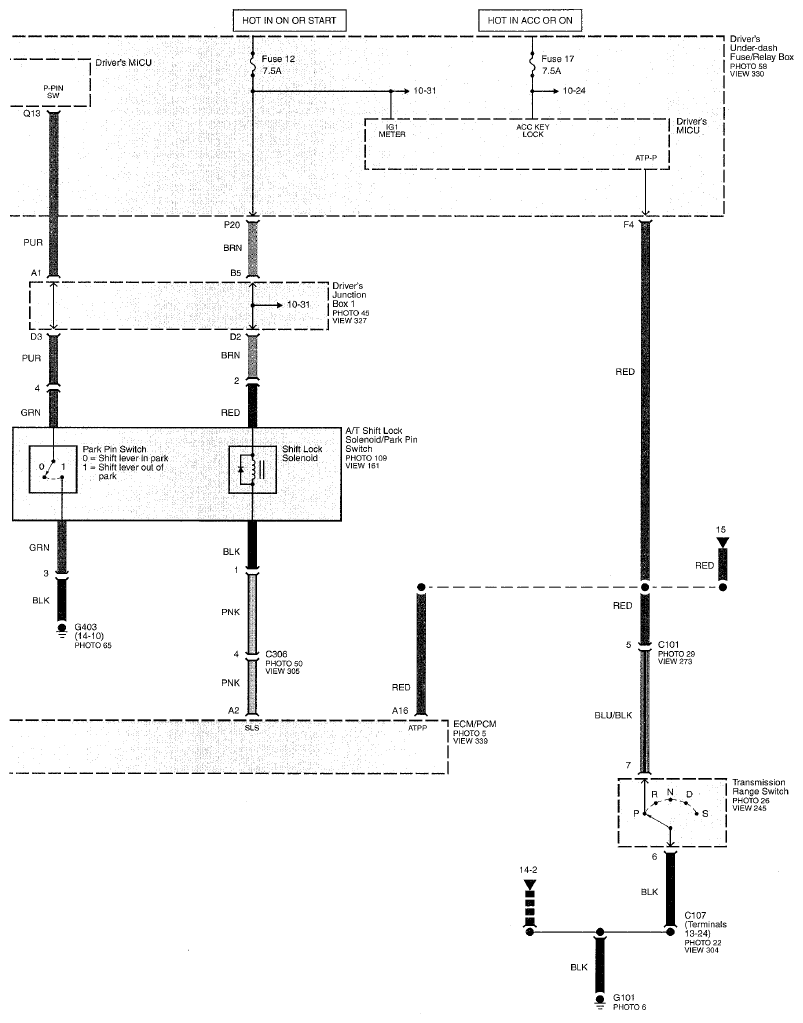

Fig 2: Interlock System Circuit Diagram - A/T: Without Keyless Access (Page 138-3)

G07755436
