Home >> Acura >> 2011 >> TL Base >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Circuit Diagrams >> Immobilizer System >> without Keyless Access

without Keyless Access

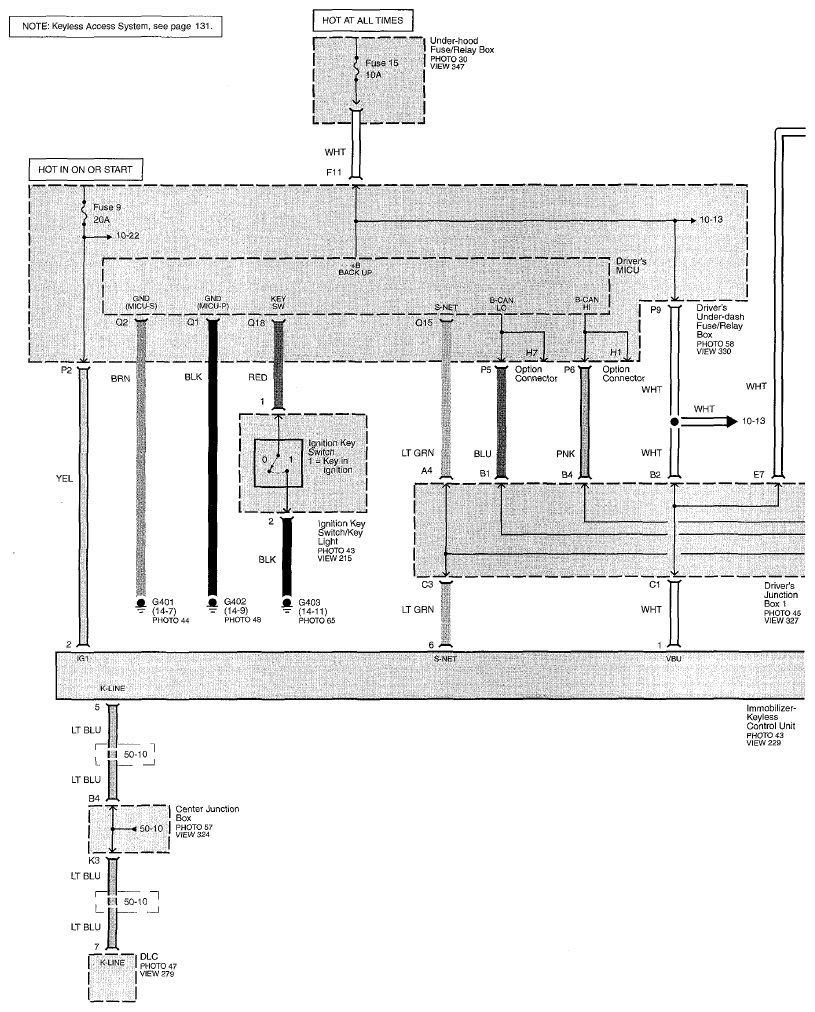

Fig 1: Immobilizer System Circuit Diagram - Without Keyless Access (Page 132)
G07755423

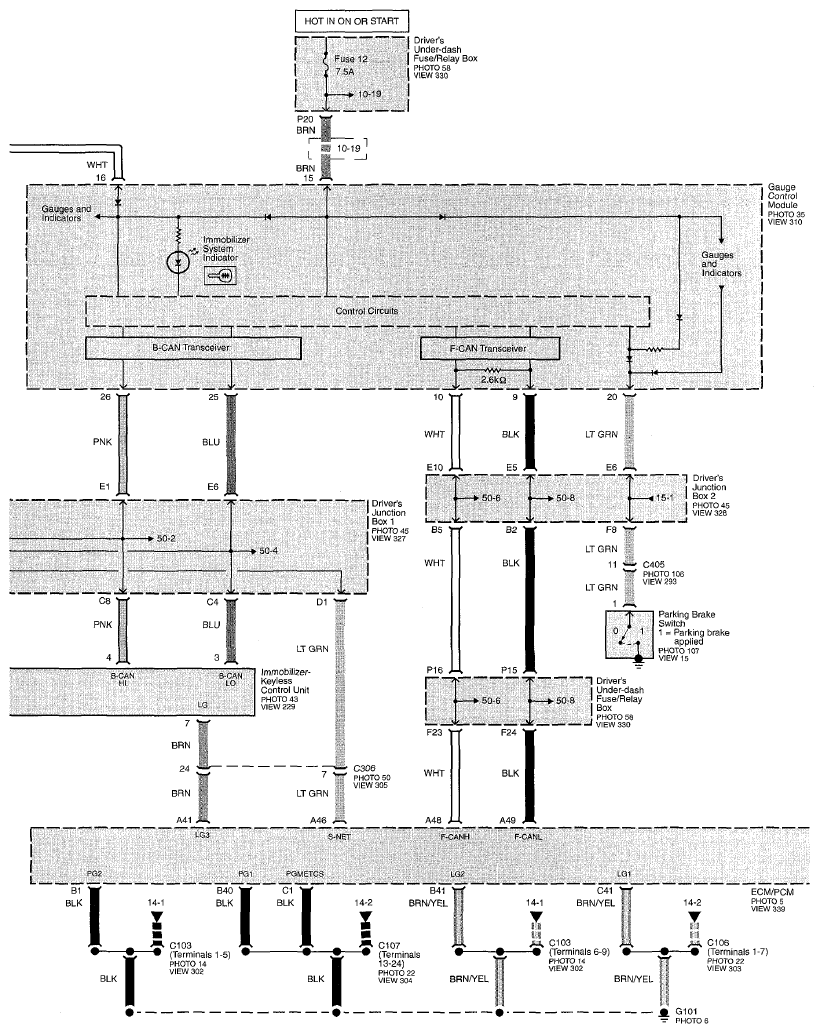

Fig 2: Immobilizer System Circuit Diagram - Without Keyless Access (Page 132-1)
G07755424

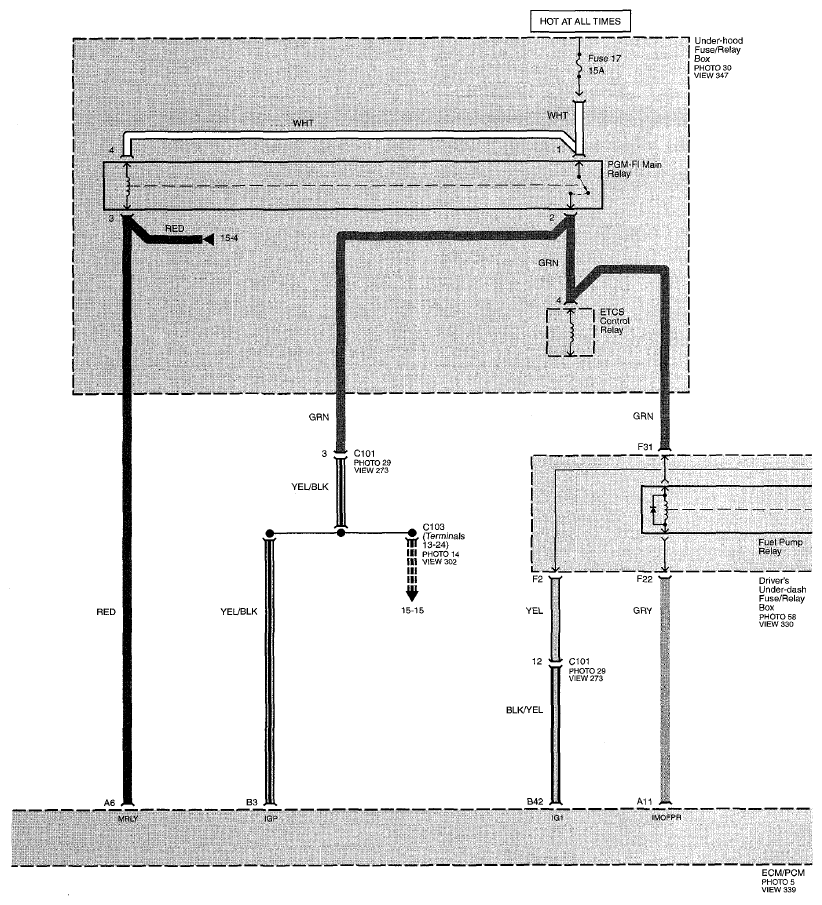

Fig 3: Immobilizer System Circuit Diagram - Without Keyless Access (Page 132-2)
G07755425

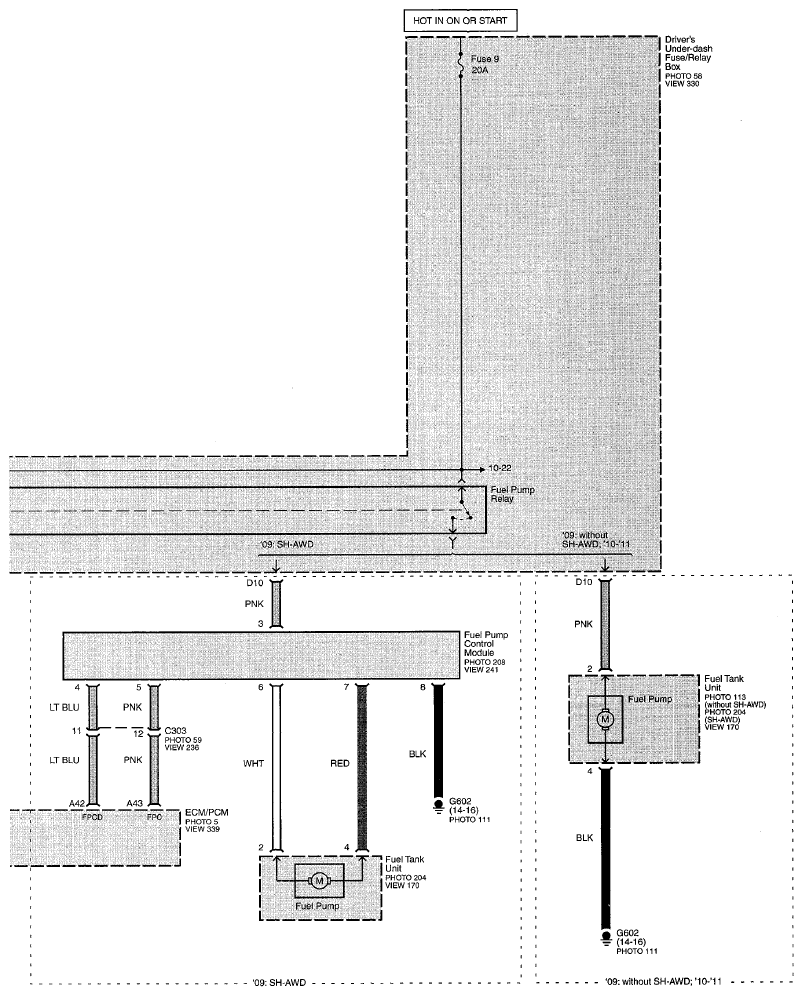

Fig 4: Immobilizer System Circuit Diagram - Without Keyless Access (Page 132-3)
G07755426
