OEM Circuit Diagrams: Fans: Notes

NOTE: For connector or component location "PHOTO", see OEM COMPONENT LOCATION . For connector "VIEW", see OEM CONNECTOR END VIEWS .

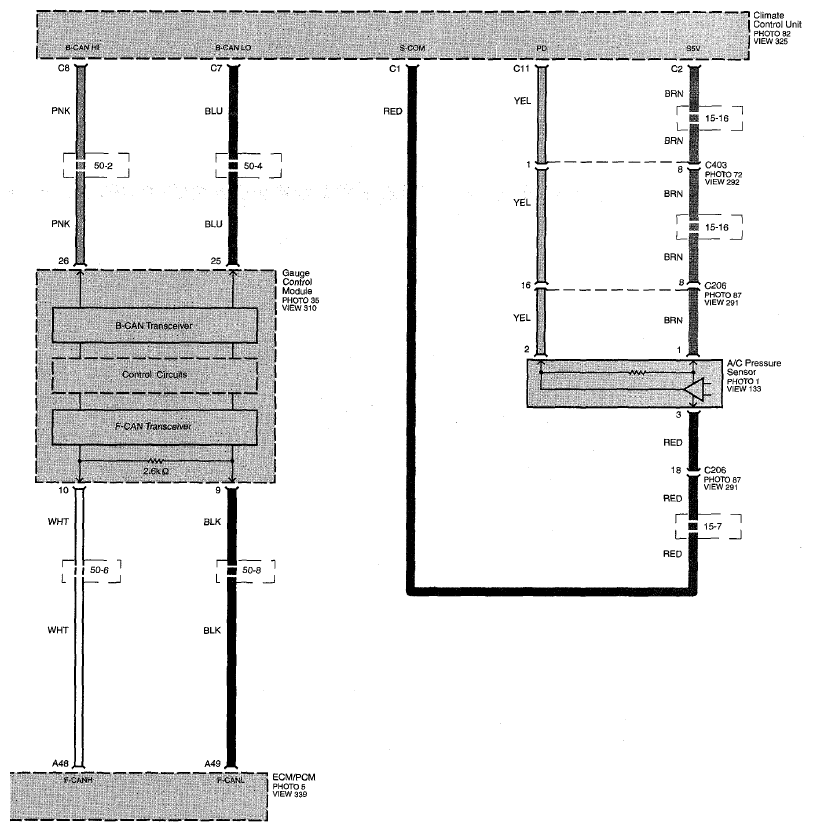

Fig 1: Fan Circuit Diagram (Page 63)

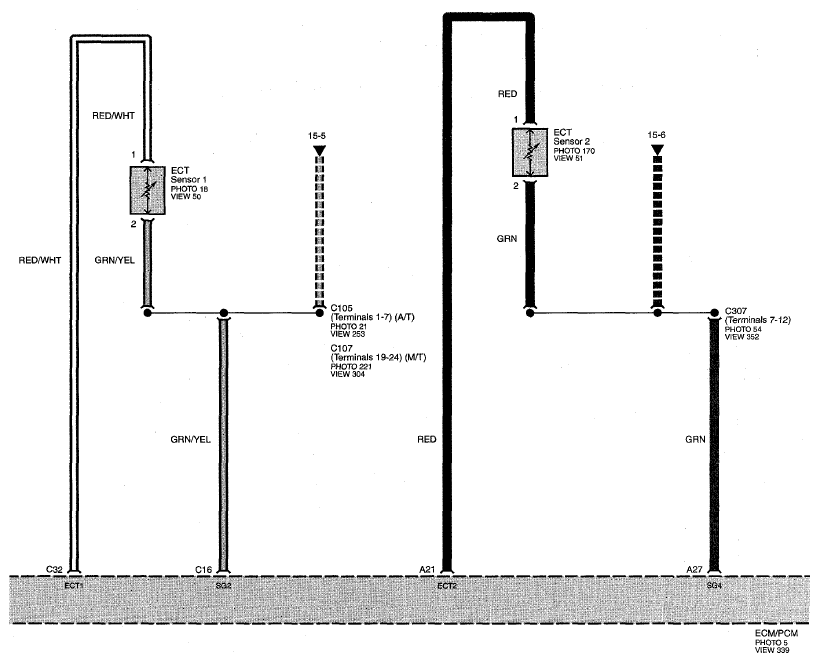

Fig 2: Fan Circuit Diagram (Page 63-1)

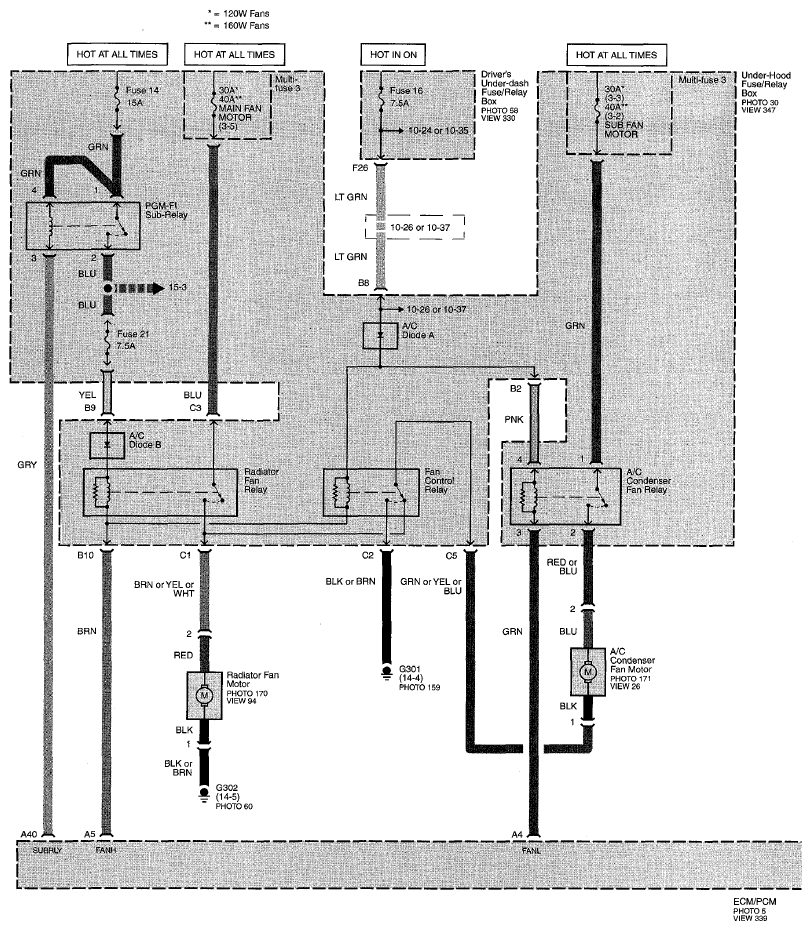

Fig 3: Fan Circuit Diagram (Page 63-2)
