OEM Circuit Diagrams: EPS

NOTE: For connector or component location "PHOTO", see OEM COMPONENT LOCATION . For connector "VIEW", see OEM CONNECTOR END VIEWS .

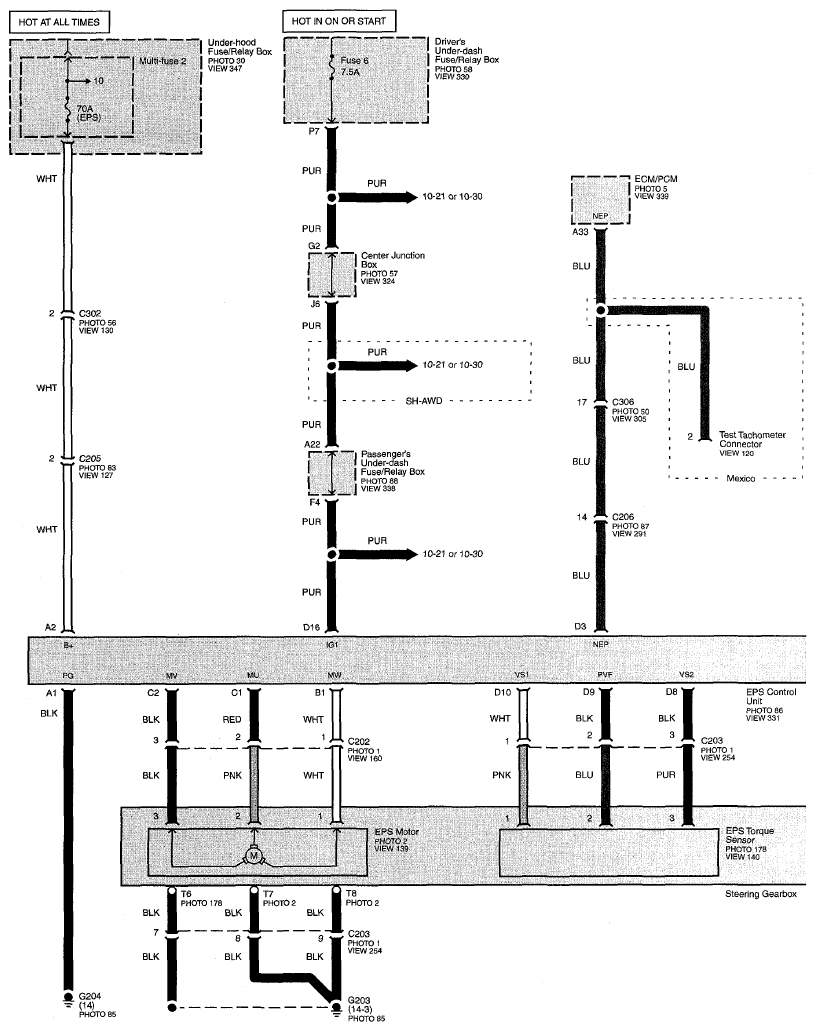

Fig 1: EPS Circuit Diagram (Page 45)

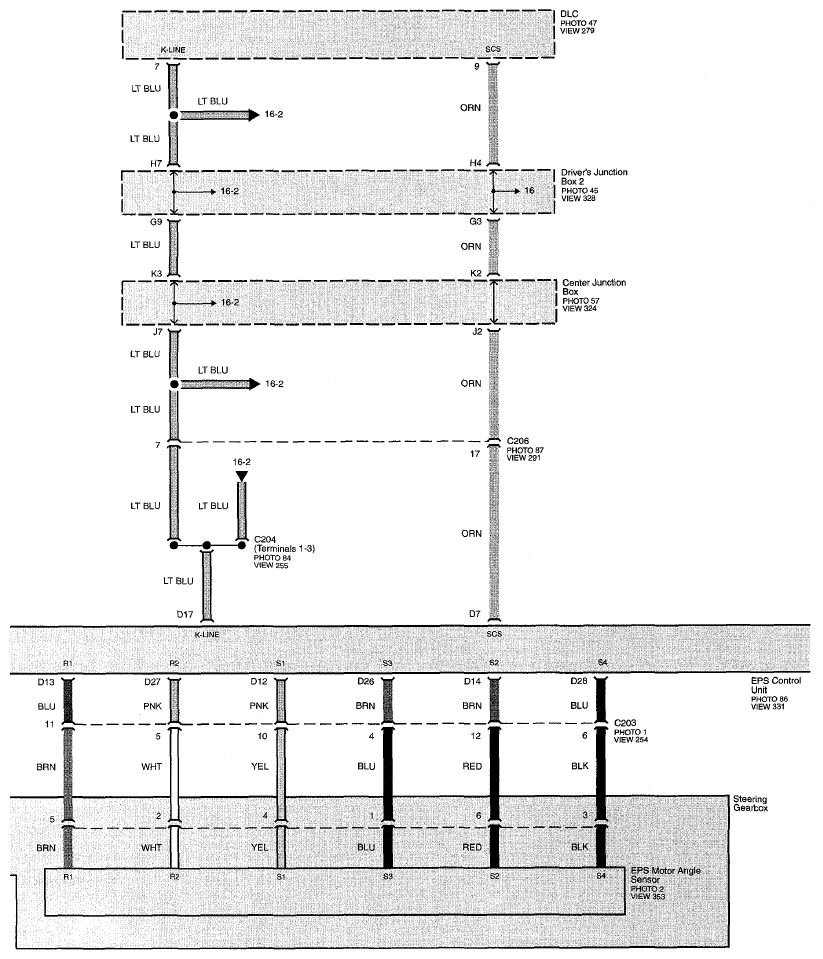

Fig 2: EPS Circuit Diagram (Page 45-1)

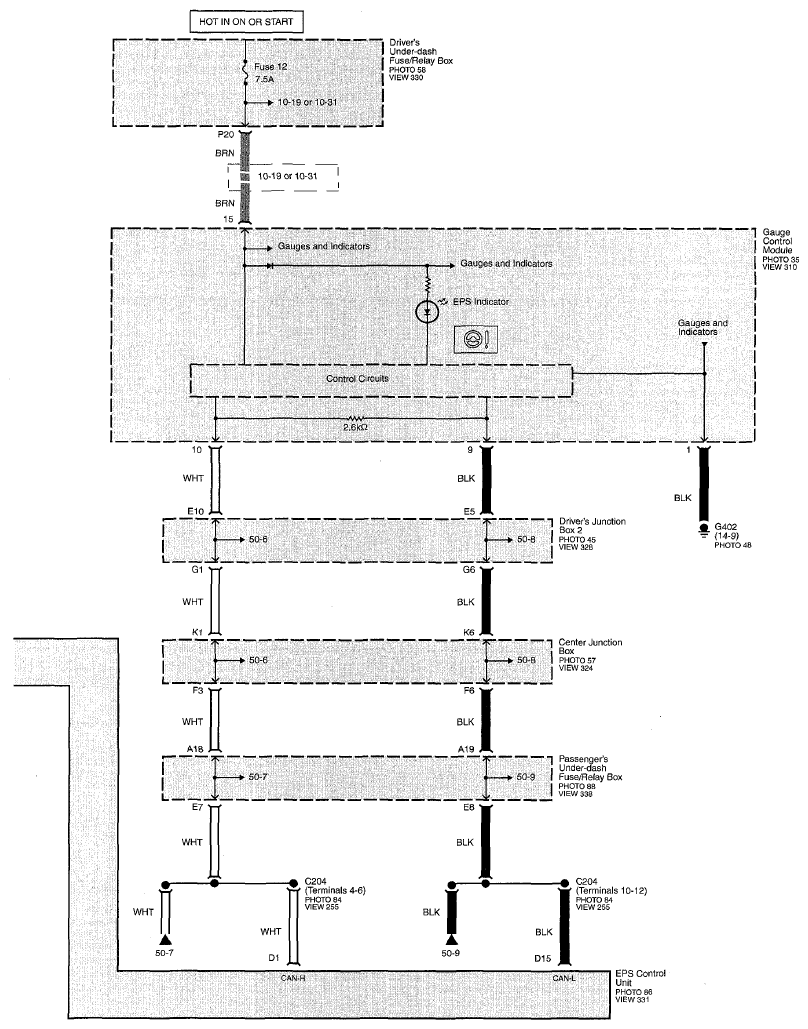

Fig 3: EPS Circuit Diagram (Page 45-2)
