Cruise Control: Notes

NOTE: For connector or component location "PHOTO", see OEM COMPONENT LOCATION . For connector "VIEW", see OEM CONNECTOR END VIEWS .

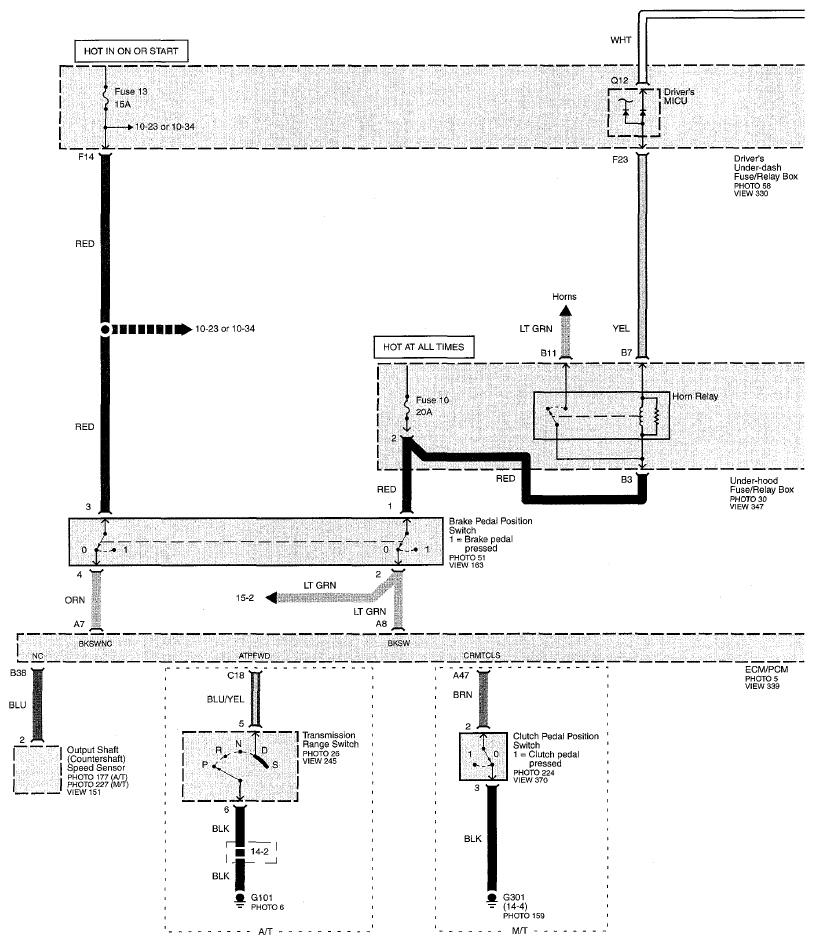

Fig 1: Cruise Control Circuit Diagram (Page 34)
G07755285

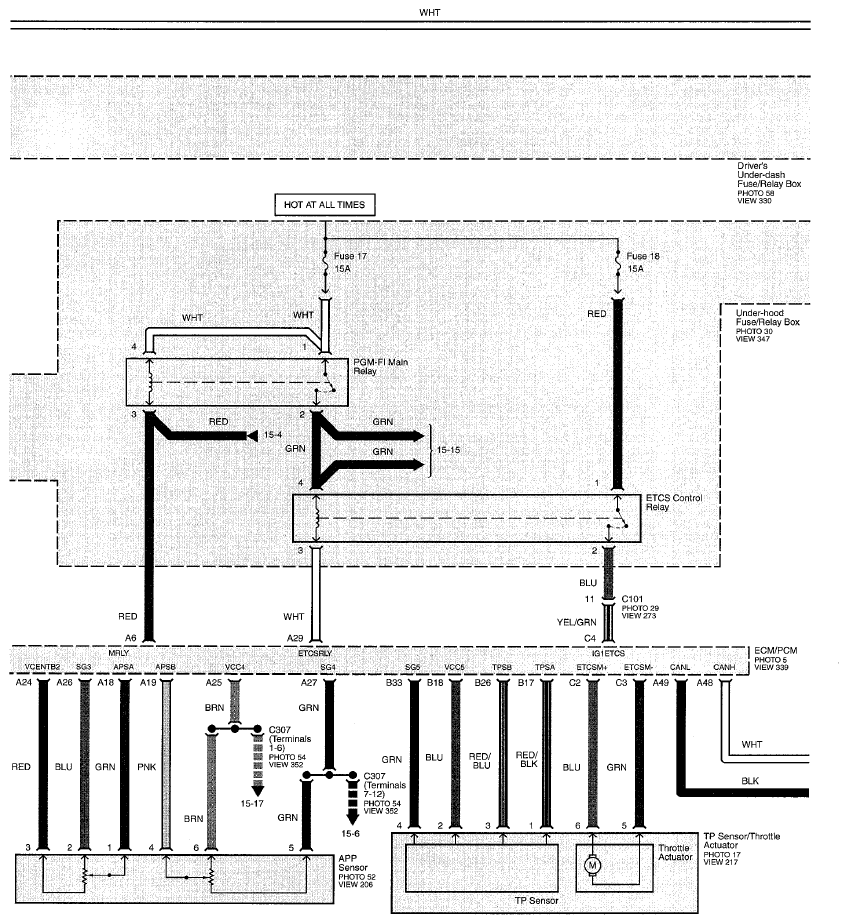

Fig 2: Cruise Control Circuit Diagram (Page 34-1)
G07755286

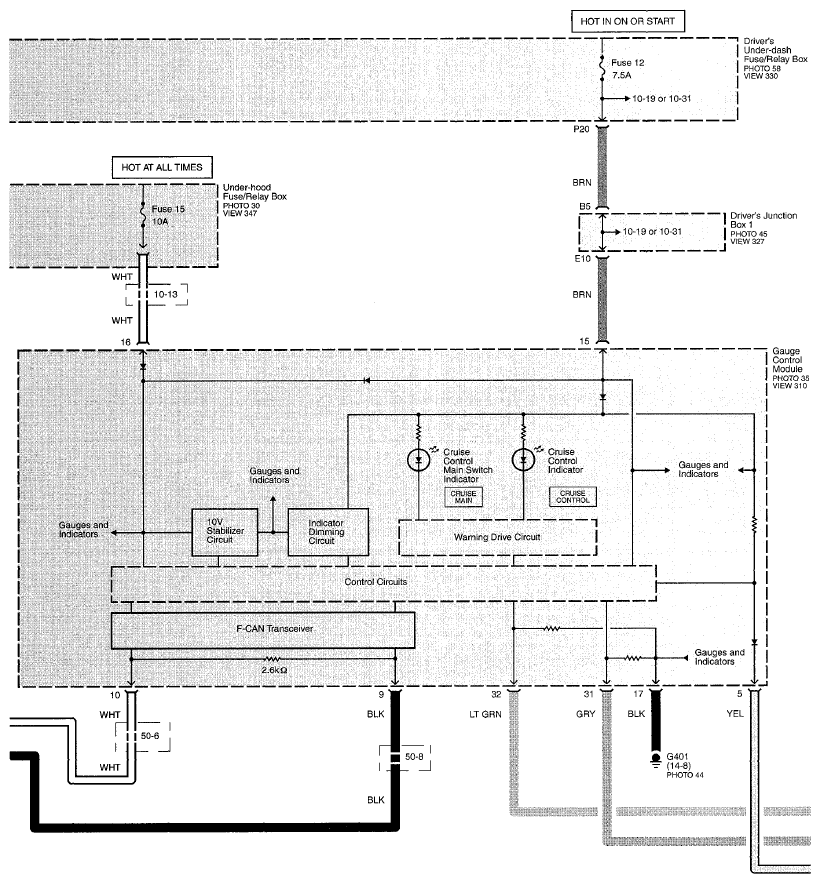

Fig 3: Cruise Control Circuit Diagram (Page 34-2)
G07755287

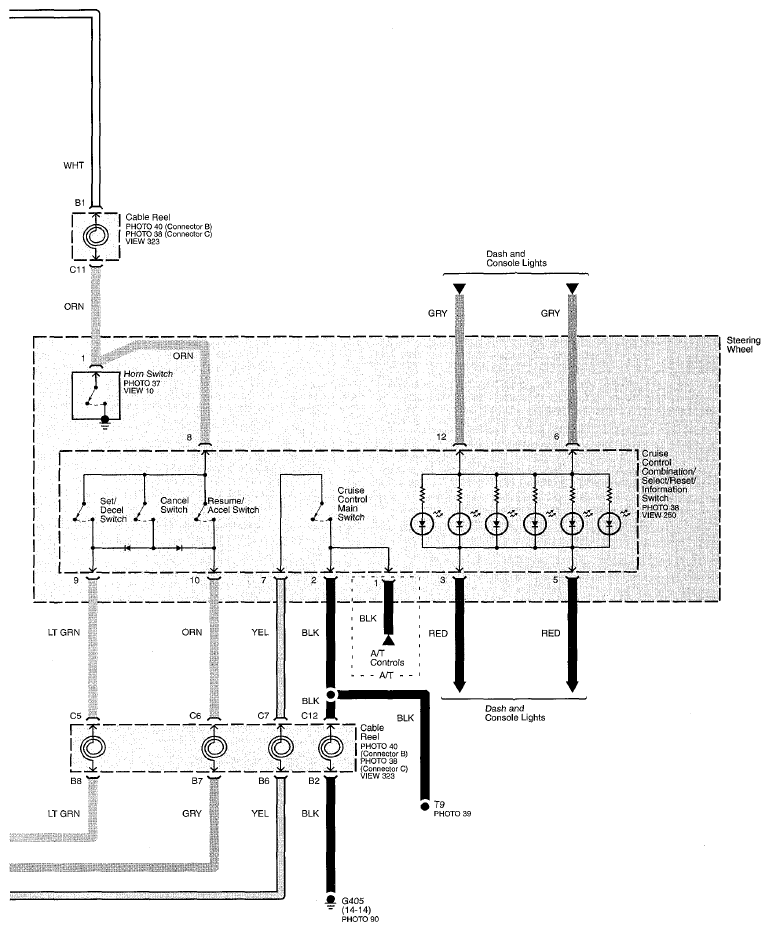

Fig 4: Cruise Control Circuit Diagram (Page 34-3)
G07755288
