without Navigation

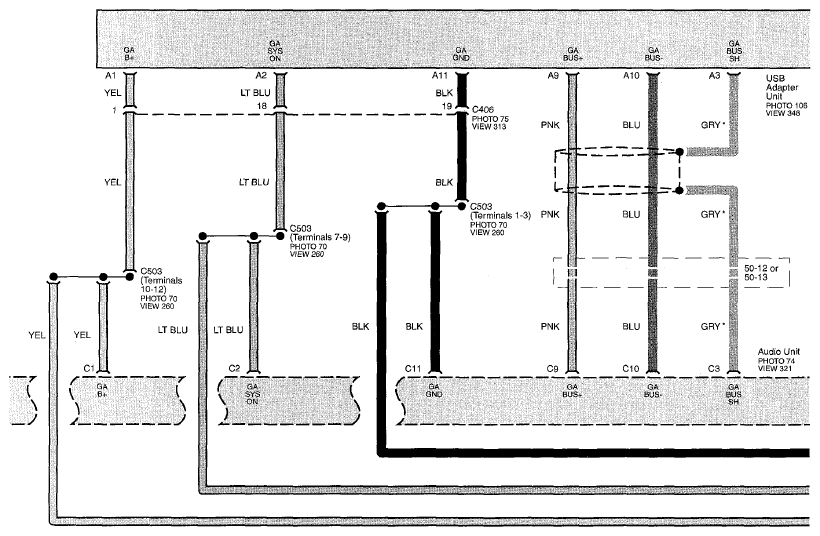

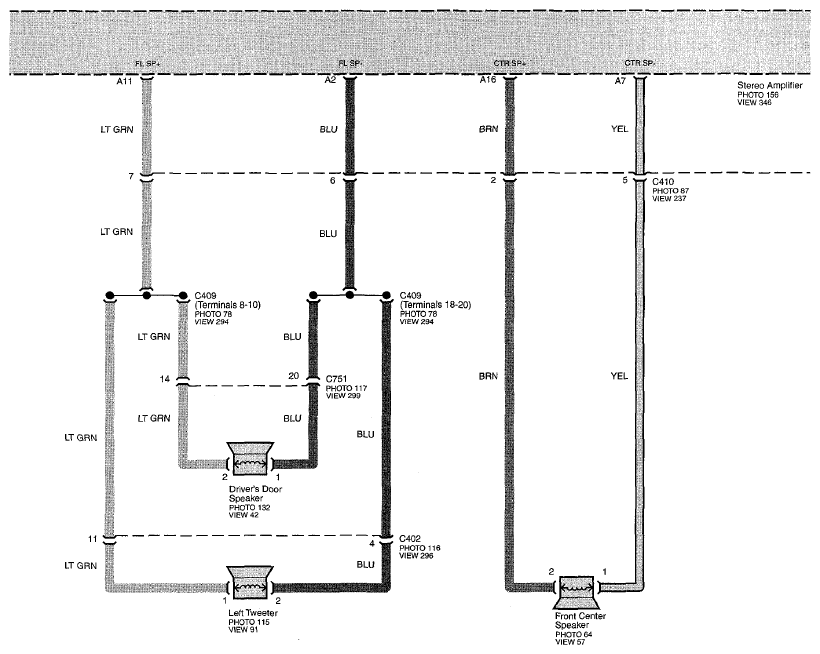

Fig 1: Audio System Circuit Diagram - Without Navigation (Page 150)

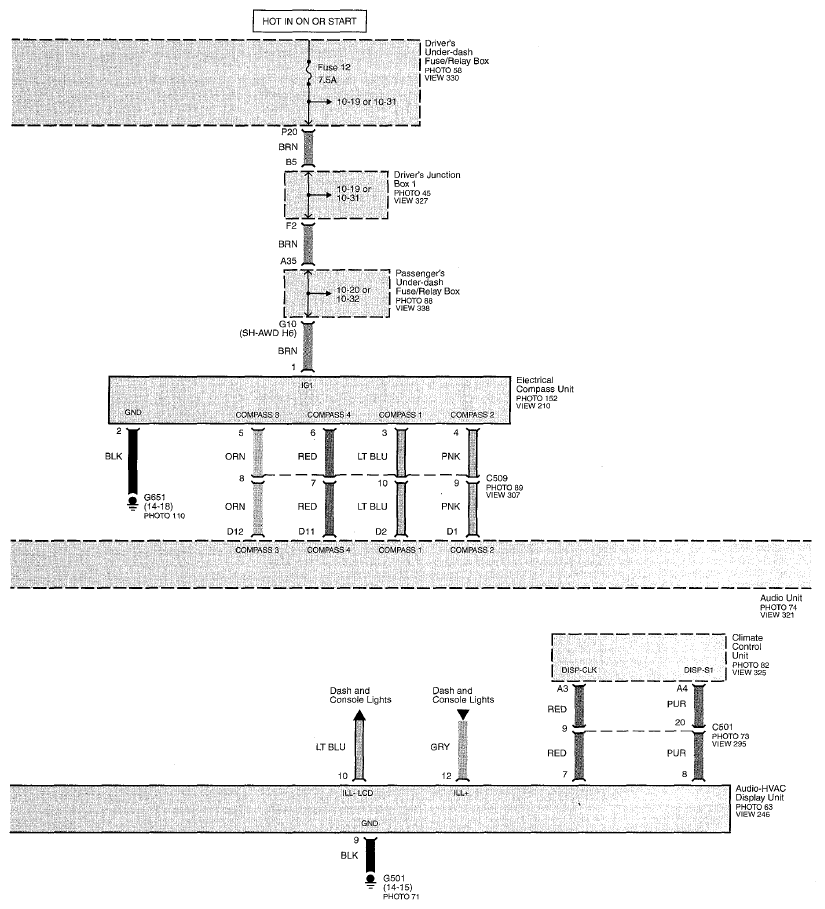

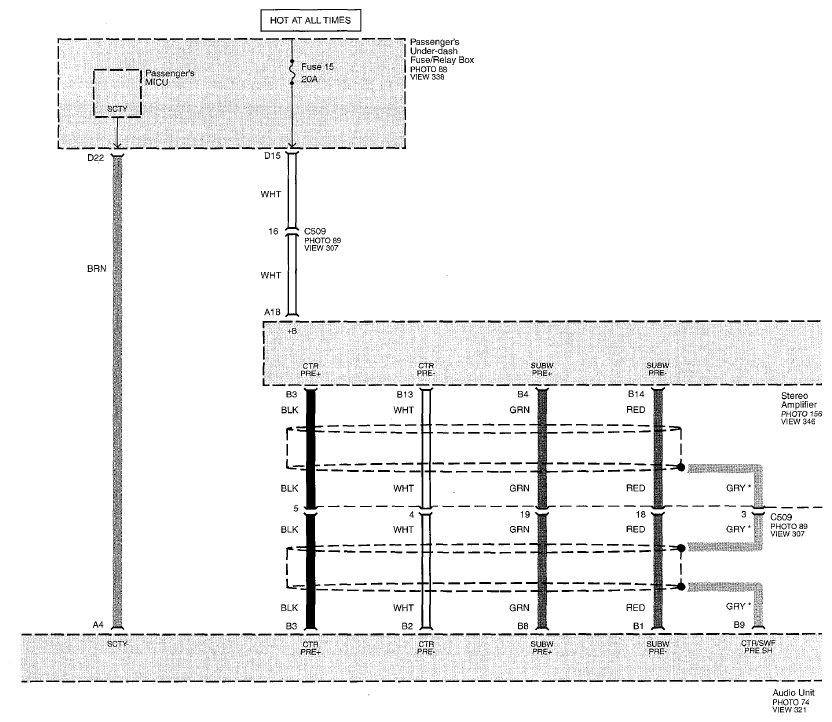

Fig 2: Audio System Circuit Diagram - Without Navigation (Page 150-1)

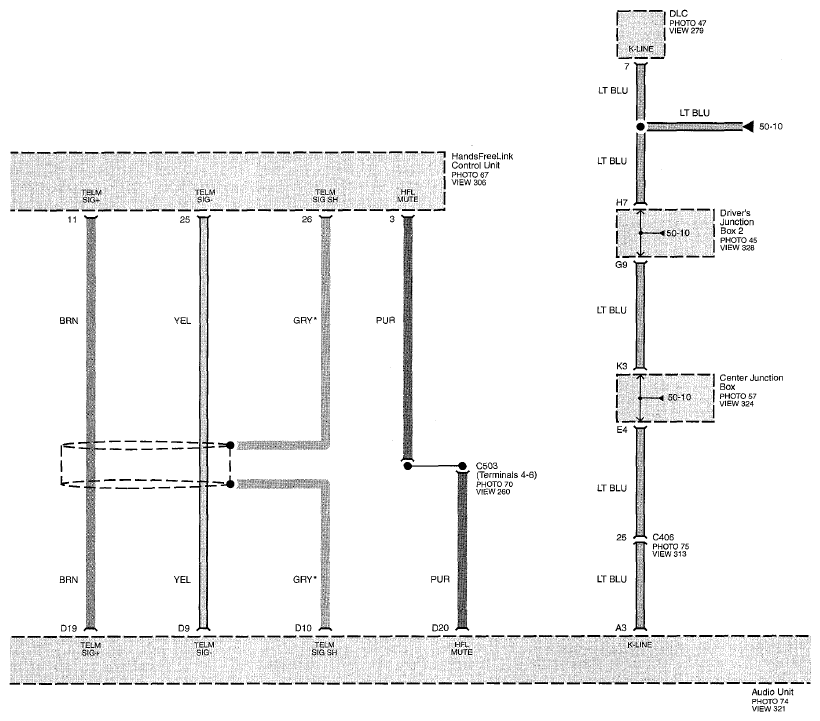

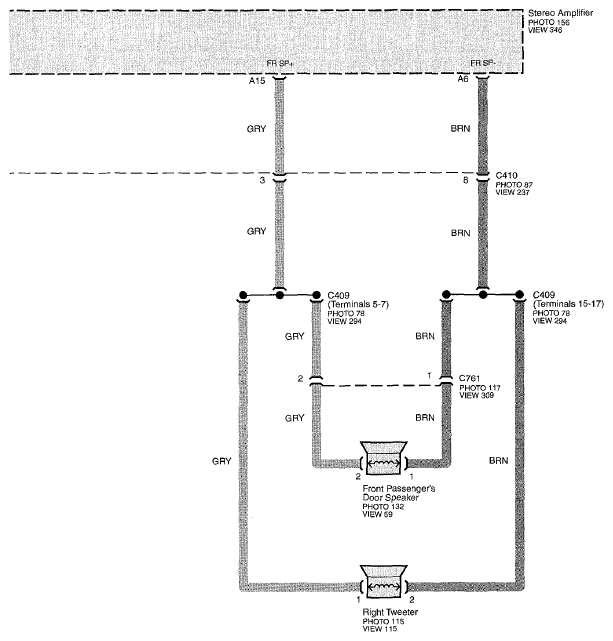

Fig 3: Audio System Circuit Diagram - Without Navigation (Page 150-2)

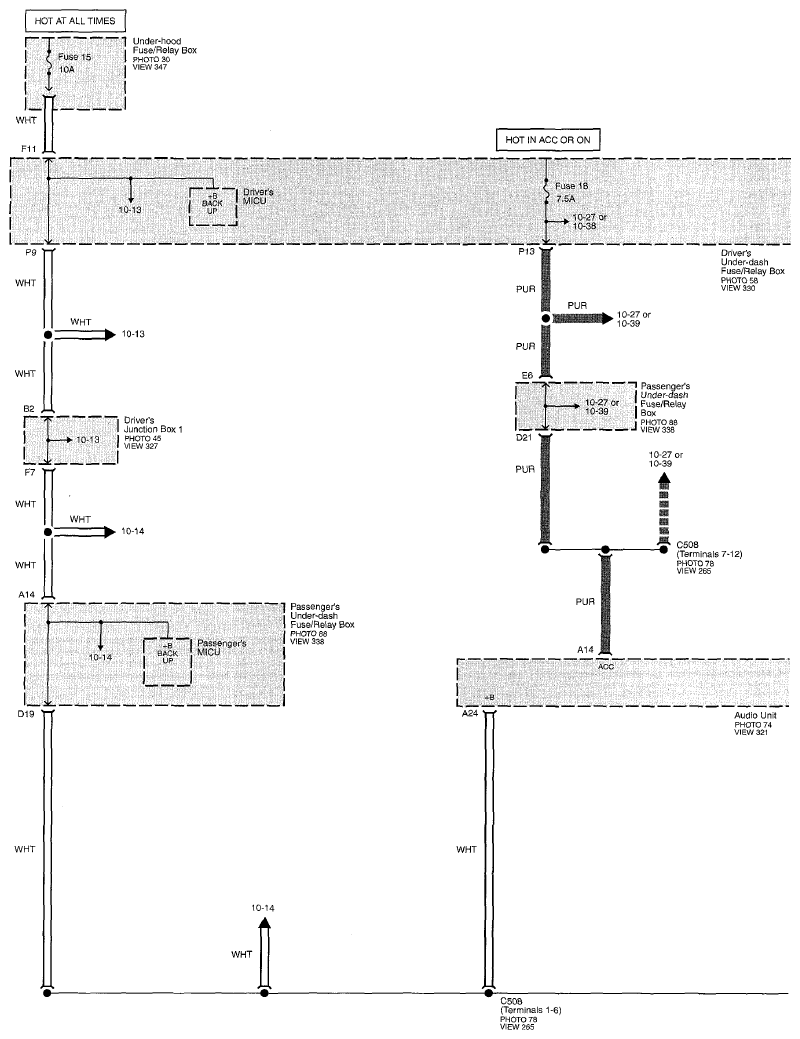

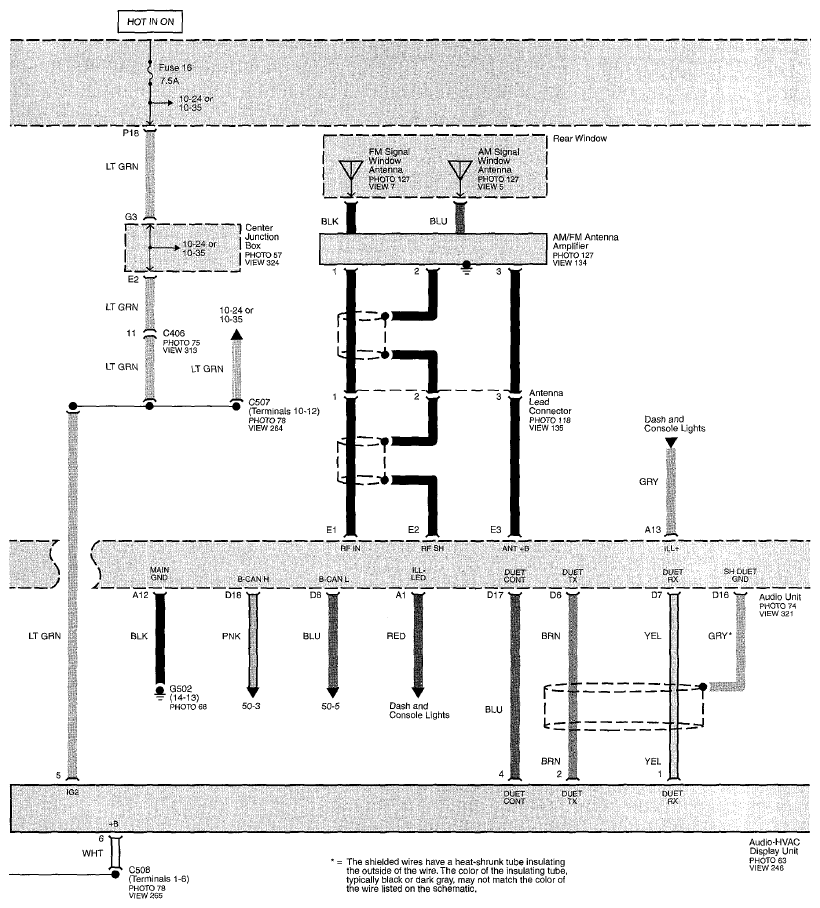

Fig 4: Audio System Circuit Diagram - Without Navigation (Page 150-3)

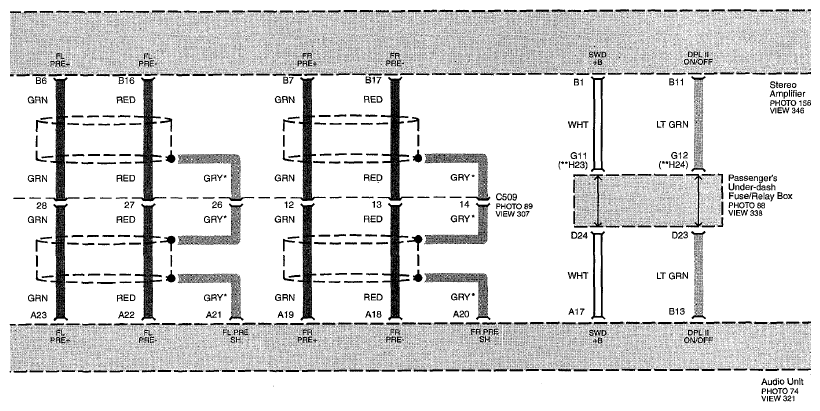

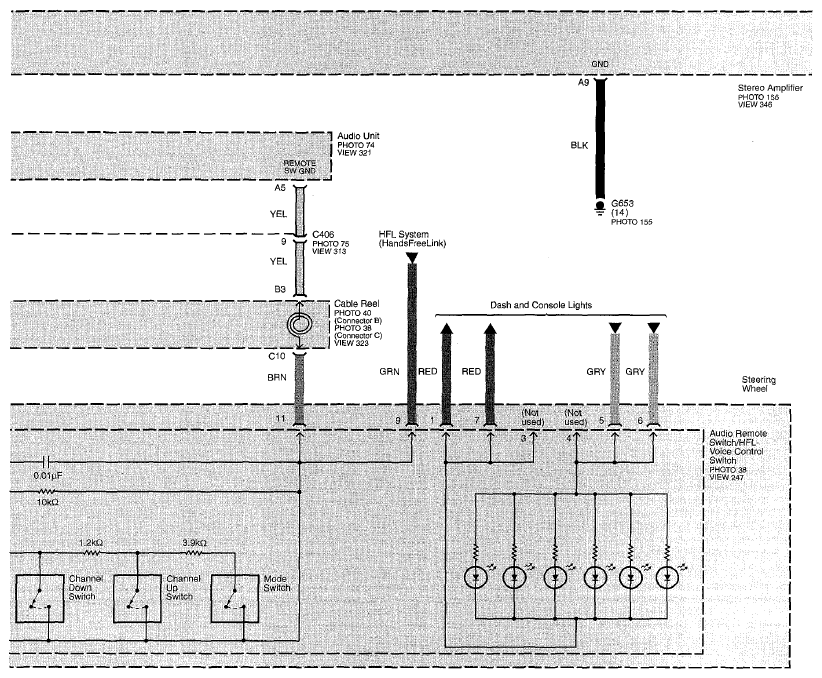

Fig 5: Audio System Circuit Diagram - Without Navigation (Page 150-4)

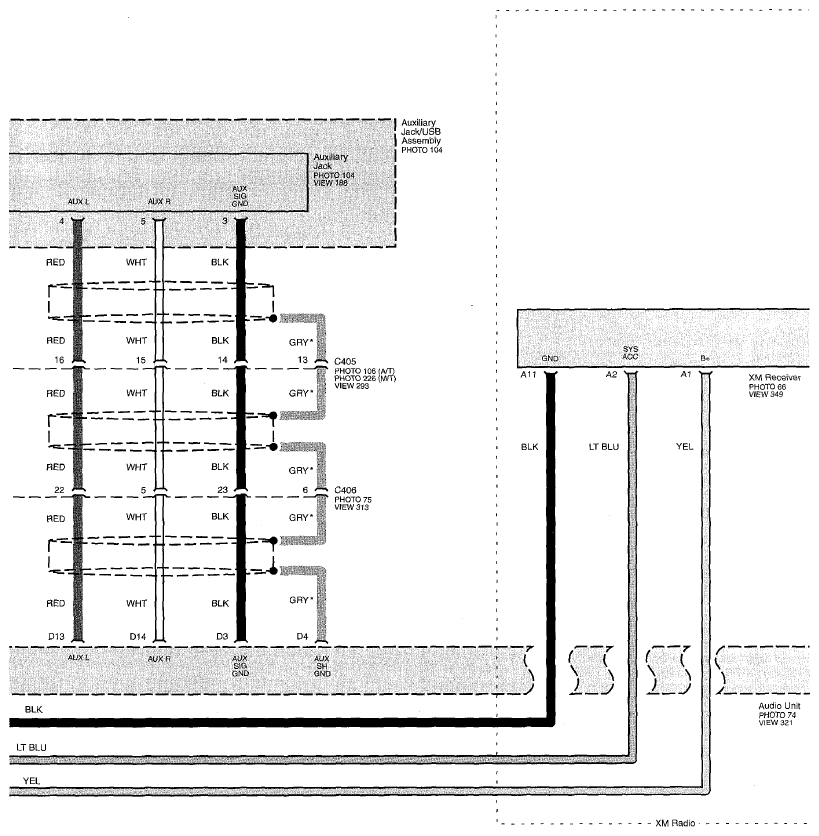

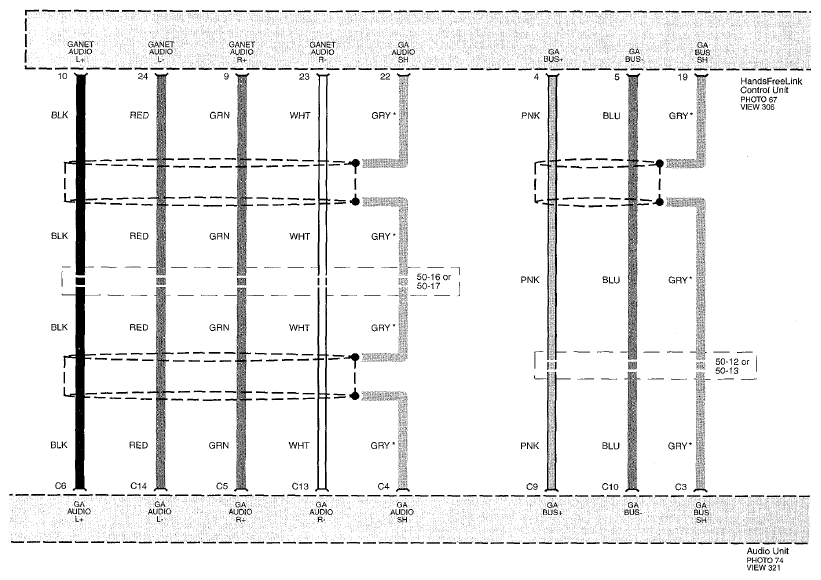

Fig 6: Audio System Circuit Diagram - Without Navigation (Page 150-5)

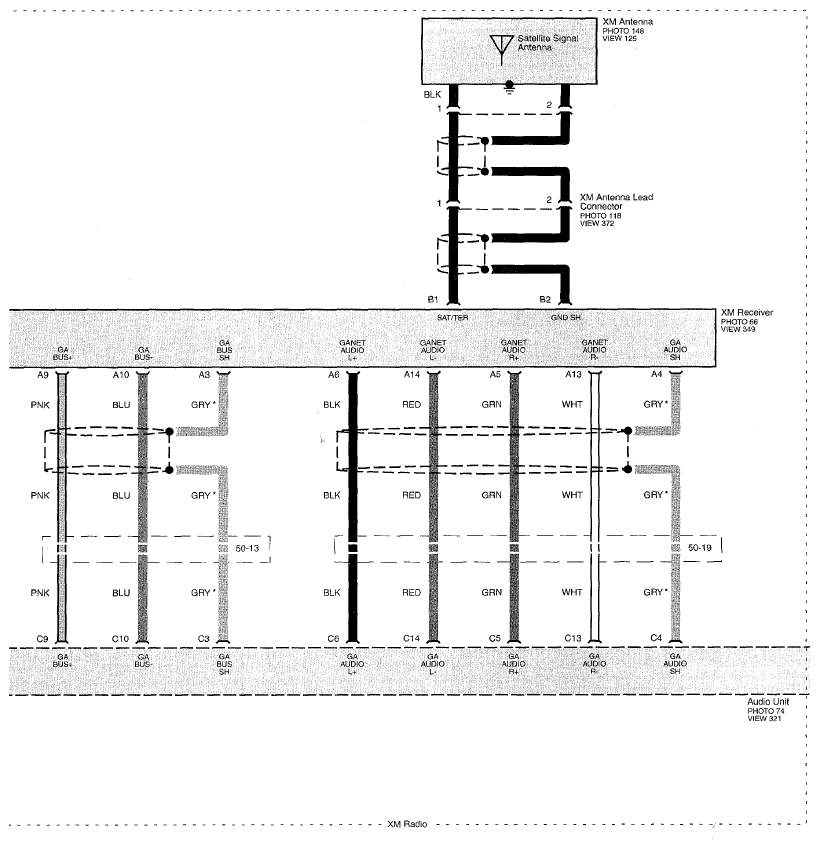

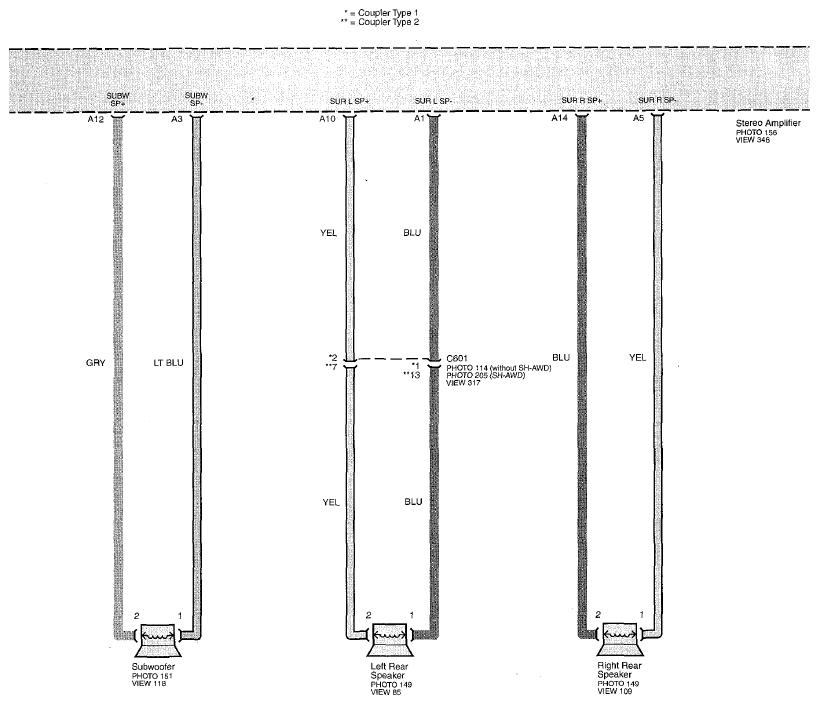

Fig 7: Audio System Circuit Diagram - Without Navigation (Page 150-6)

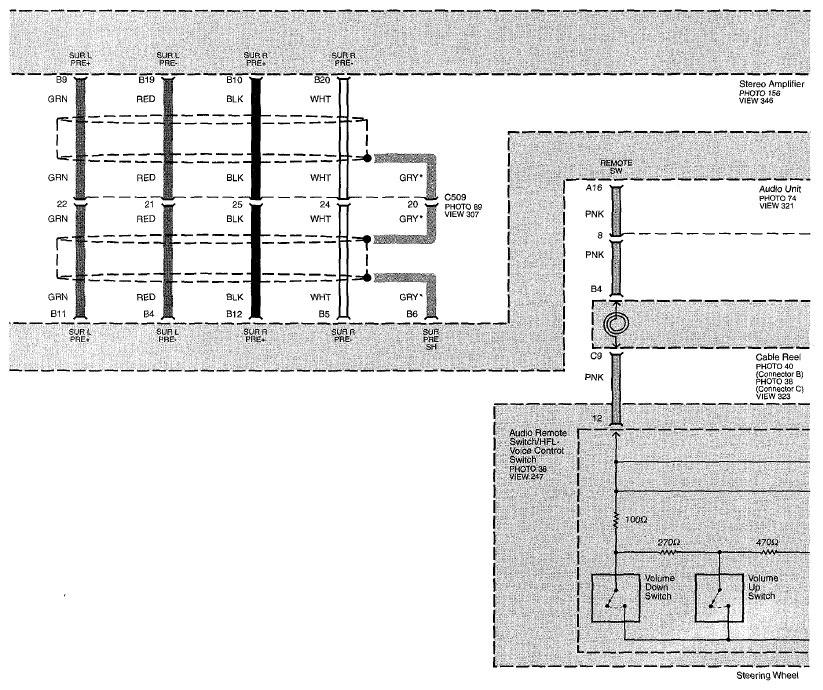

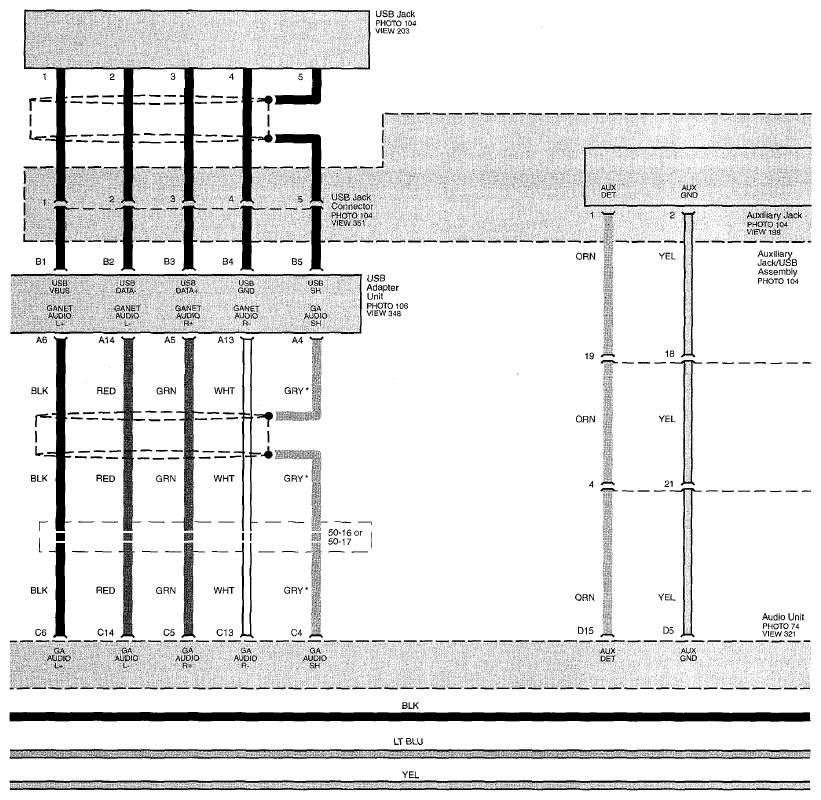

Fig 8: Audio System Circuit Diagram - Without Navigation (Page 150-7)

Fig 9: Audio System Circuit Diagram - Without Navigation (Page 150-8)

Fig 10: Audio System Circuit Diagram - Without Navigation (Page 150-9)

Fig 11: Audio System Circuit Diagram - Without Navigation (Page 150-10)

Fig 12: Audio System Circuit Diagram - Without Navigation (Page 150-11)

Fig 13: Audio System Circuit Diagram - Without Navigation (Page 150-12)

Fig 14: Audio System Circuit Diagram - Without Navigation (Page 150-13)

Fig 15: Audio System Circuit Diagram - Without Navigation (Page 150-14)
