Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM Circuit Diagrams
>>
A/T Gear Position Indicator
>>
Notes
A/T Gear Position Indicator: Notes
NOTE:
For connector or component location "PHOTO", see
OEM COMPONENT LOCATION
. For connector "VIEW", see
OEM CONNECTOR END VIEWS
.

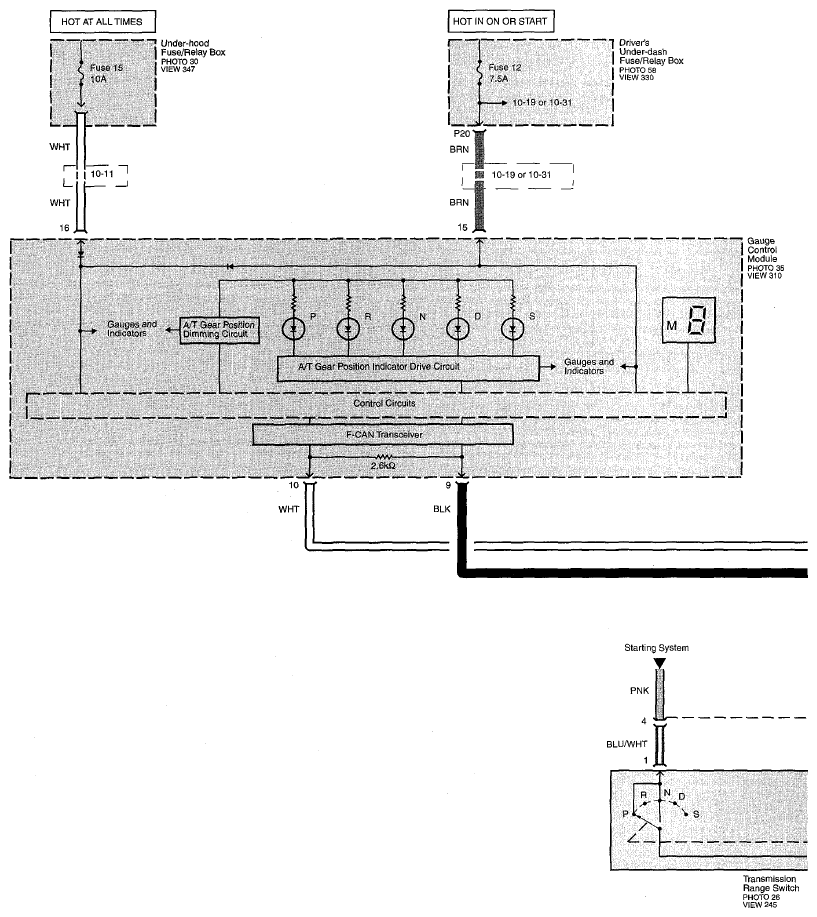

Fig 1: A/T Gear Position Indicator Circuit Diagram (Page 89)

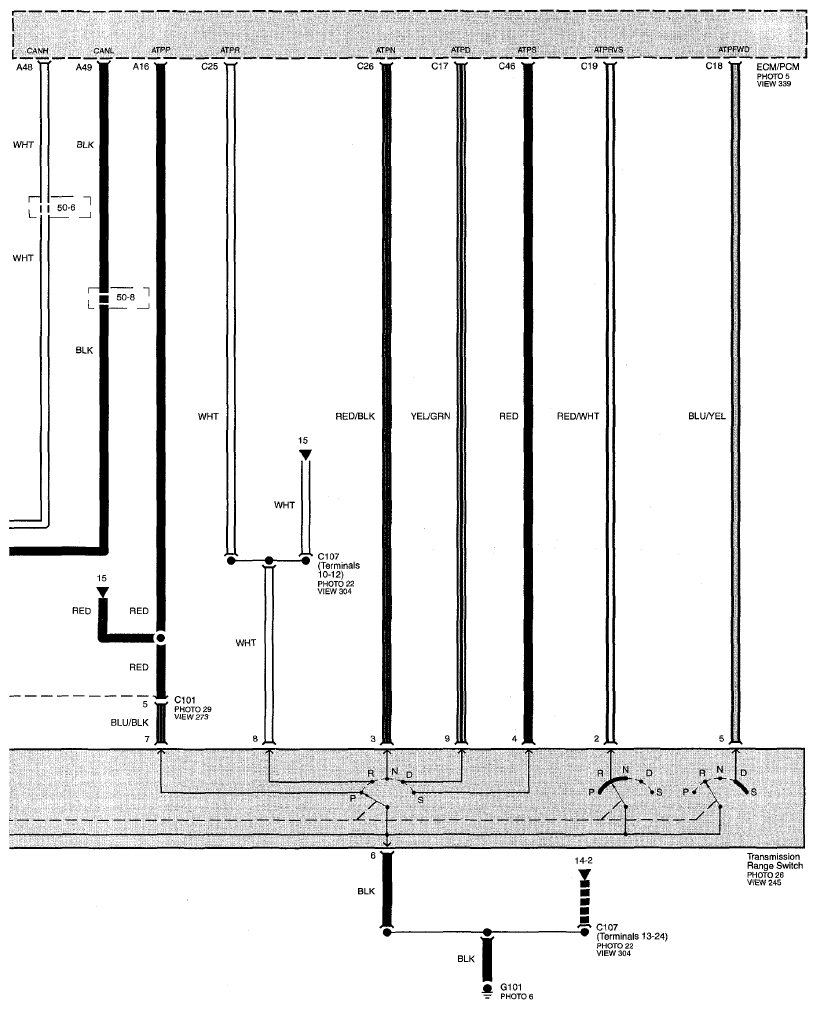

Fig 2: A/T Gear Position Indicator Circuit Diagram (Page 89-1)
