Battery Removal and Installation: Installation

Install the battery (A), then install the battery setting plate (B)

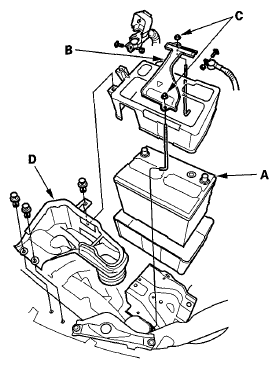

Fig 1: Identifying Battery, Battery Setting Plate, Nuts And Intake Air Duct
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Tighten the two nuts (C) equally until the battery is stable
NOTE: Do not deform the battery setting plate by over-tightening the nuts
Install the intake air duct (D) and three clips
Do the battery terminal reconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION )

NOTE: Make sure the battery is installed correctly, and the positive terminal and the negative terminal are not reversed-connected
