Power Mirror Actuator Replacement

Removal

1. Remove the these items
   • Mirror holder (see MIRROR HOLDER REPLACEMENT )
   • Power mirror (see POWER MIRROR REPLACEMENT )
   • Side turn signal light (see BULB REPLACEMENT )
2. Disconnect the power mirror 16P connector from the door harness
3. Remove the gaskets (A), then remove the screw and cord from the mirror bracket (B)

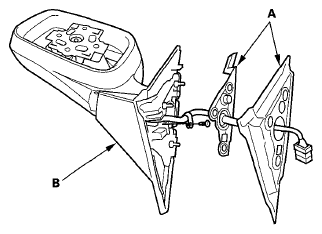

   Fig 1: Identifying Gaskets And Mirror Bracket

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Record the terminal location and wire colors, then cut the mirror actuator wires with the wire cutter
   Fig 2: Cutting Mirror Actuator Wires With Wire Cutter

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. Remove the cover (A)
   Fig 3: Identifying Cover, Mirror Bracket, Seal And Housing With Screws

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
6. Remove the three screws, separate the mirror bracket (B), then remove screw, separate the seal (C) from the housing (D)
7. Remove the two screws then remove the visor (A) and the actuator housing (B) from the housing (C)

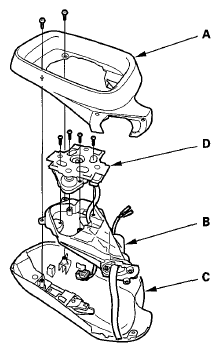

   Fig 4: Identifying Visor, Actuator Housing, Housing And Actuator With Screws

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
8. Remove the four screws and the actuator (D) from the actuator housing

   Installation

9. Install new actuator to the housing and visor in the reverse order of step 7 and 8
10. Route the wire harness (A) of a new actuator through the hole in the seal (B), then tighten a screw (C)

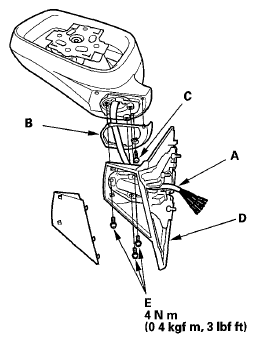

    Fig 5: Wire Harness, Seal, Screws And Bracket With Torque Specification

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
11. Route the wire harness of a new actuator through the hole in the bracket (D)
12. Reassemble the mirror in the reverse order of removal Apply LOCTITE to the three screws (E) and tighten to 4 N m (0 4 kgf m, 3 lbf ft)
13. Install the gasket in the reverse order of removal
14. Insert the mirror actuator wires into the original terminal locations as noted in step 4
    NOTE: Be careful to insert the wires correctly because the wires cannot be removed from the coupler once they are inserted
15. Reassemble in the reverse order of disassembly
    NOTE: Be careful not to break the mirror when reinstalling it to the actuator
16. Reinstall the mirror assembly on the door
17. Operate the power mirror to ensure smooth operation
