Strut Brace Replacement

  1. Remove the cowl cover (see COWL COVER REPLACEMENT )
  2. Disconnect the brake booster vacuum hose (A) from the strut brace

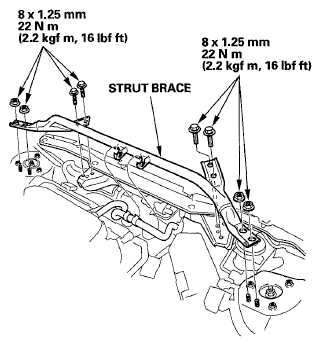

    3. Fig 1: Strut Brace With Torque Specifications
    G05988527Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the bolts and the nuts from the top of the damper, and remove the strut brace
  4. Install the strut brace in the reverse order of removal
