Retainer Replacement

NOTE: Take care not to scratch the body or damage the windshield. When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
  1. Pry up the middle hooks (A) with a flat-tip screwdriver, and slide the retainers (B) upward to release them from the pins (C) on the C-pillar Take care not to scratch the body or damage the windshield

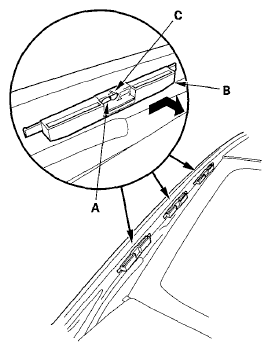

    Fig 1: Identifying Retainers And Pins
    G05988505Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the retainers in the reverse order of removal and make sure the retainers are securely fastened on the C-pillar pins.
