Emblem/Sticker Replacement

NOTE: When removing the emblems/stickers, take care not to scratch the body
  1. To remove the front "A" emblem, raise the vehicle on a lift From underneath the vehicle, remove the two screws, then remove the emblem
  2. Clean the body surfaces where emblems/sticker are applied with a shop towel dampened in isopropyl alcohol After cleaning, keep oil, grease, and water from getting on the surface
  3. Apply the emblems/sticker where shown When installing the ULEV sticker on the inside surface of the left rear door quarter glass, align the sticker with the edge of the glass mark and the edge of the black ceramic as shown, then press the sticker into place, and remove the application tape

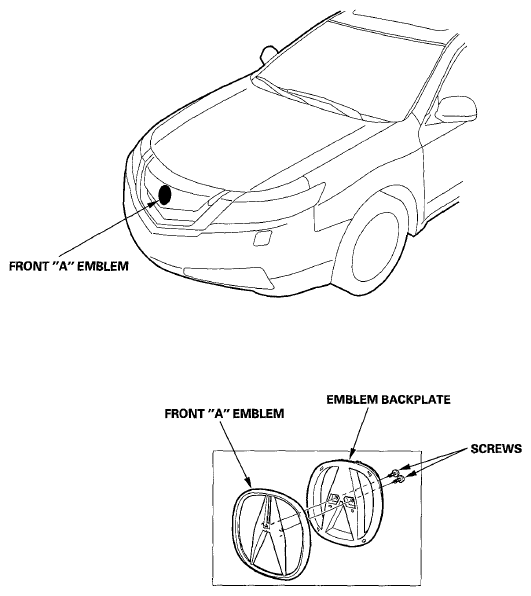

    Fig 1: Identifying Front "A" Emblem Location
    G05988513Courtesy of AMERICAN HONDA MOTOR CO., INC.

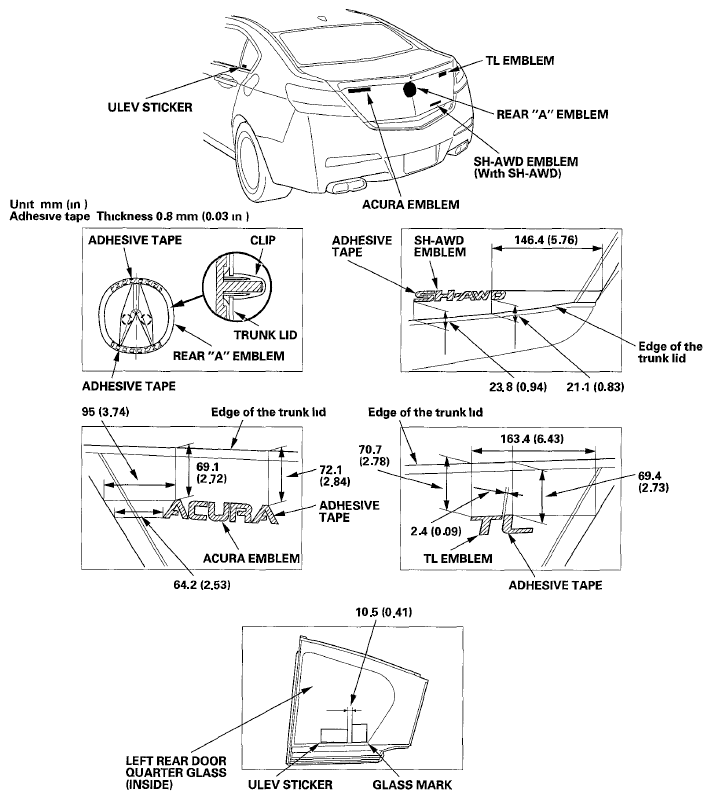

    Fig 2: Identifying Emblem And Sticker Location
    G05988514Courtesy of AMERICAN HONDA MOTOR CO., INC.
