Starter Removal and Installation: Installation

  1. Install the starter (A) with the skid block (B).
    NOTE: Always use a new gasket (C).

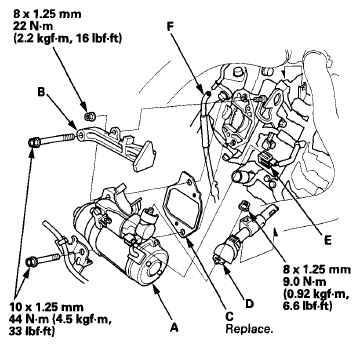

    Fig 1: Installing Starter With Skid Block With Torque Specifications
    G07353447Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Connect the positive starter cable (D) and the 1P connector (E). Make sure the crimped side of the ring terminal faces away from the starter when you connect it.
  3. Connect the vacuum hose (F).
  4. Install the transmission dipstick.
    Fig 2: Connecting Vacuum Hose
    G07353448Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Install the engine cover.

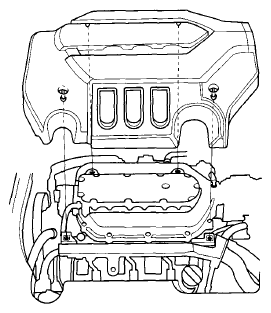

    Fig 3: Installing Engine Cover
    G07353449Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Do the battery terminal reconnection procedure (see RECONNECTION ).
  7. Start the engine to make sure the starter works properly.
