Side Engine Mount Removal and Installation: Installation

  1. Install the side engine mount (A)., 12x1.25 mm

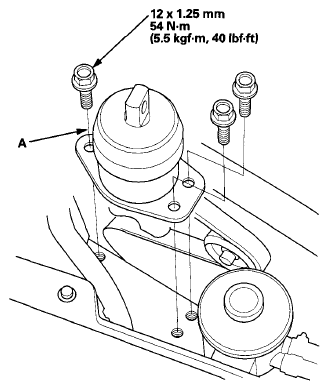

    Fig 1: Installing Side Engine Mount With Torque Specifications
    G07361675Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the upper half of the side engine mount bracket (A), and tighten the mounting bolts (B).

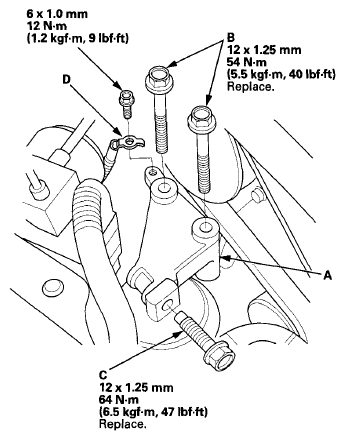

    Fig 2: Installing Upper Half Of Side Engine Mount Bracket With Torque Specifications
    G07361676Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the jack and the wood block.
  4. Tighten the side engine mount mounting bolt (C).
  5. Install the ground cable (D).
  6. Tighten the mounting bolts in the numbered sequence shown.
