Rear Engine Mount Removal and Installation: Installation

Connect the vacuum hose (A), and install the engine mount insulator (B) to the engine mount.

Fig 1: Installing Engine Mount Insulator To Engine Mount
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the rear engine mount assembly (A) to the front subframe.

Fig 2: Installing Rear Engine Mount Assembly To Front Subframe With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the jack and the wood block.
Install the rear engine mount bolt (A)

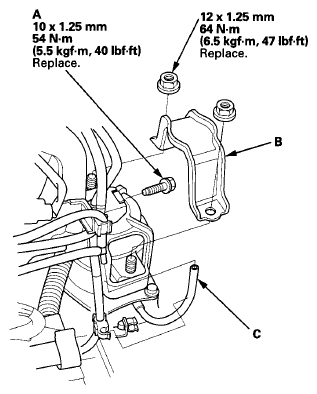

Fig 3: Installing Rear Engine Mount Bolt With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the rear engine mount stop (B), and connect the vacuum hose (C).
Install the front strut brace (see FRAME BRACE REPLACEMENT ).
