Front Engine Mount Removal and Installation: Removal

  1. Remove the radiator fan shroud assembly (see FAN, FAN MOTOR, AND SHROUD REMOVAL AND INSTALLATION ).
  2. Remove the front engine mount stop (A), and disconnect the vacuum hose (B).

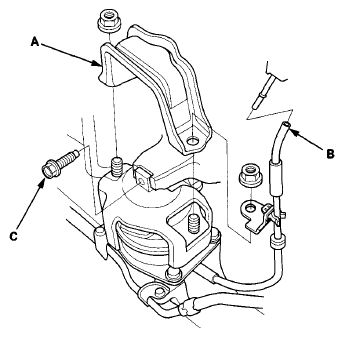

    Fig 1: Removing Front Engine Mount Stop
    G07361677Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the front engine mount bolt (C).
  4. Lift and support the engine with a jack and a wood block under the engine/transmission.
  5. Remove the front engine mount (A) from the front subframe.
    Fig 2: Removing Front Engine Mount From Front Subframe
    G07361678Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Remove the front engine mount insulator (B), then disconnect the vacuum hose (C).
