Front Engine Mount Removal and Installation: Installation

  1. Connect the vacuum hose (A), and install the engine mount insulator (B) to the front engine mount (C).

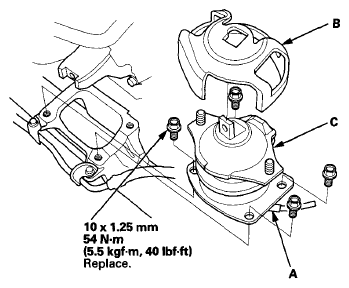

    Fig 1: Installing Engine Mount Insulator To Front Engine Mount With Torque Specifications
    G07361679Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the front engine mount to the front subframe.
  3. Remove the jack and the wood block.
  4. Tighten the front engine mount bolt (A), then install the front engine mount stop (B).

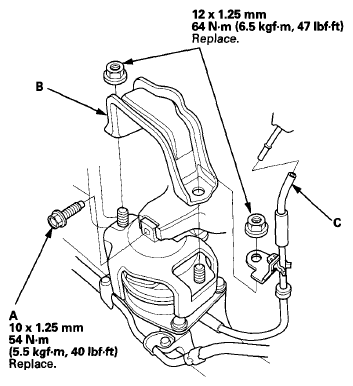

    Fig 2: Installing Front Engine Mount Stop With Torque Specifications
    G07361680Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Connect the vacuum hose (C).
  6. Install the radiator fan shroud assembly (see FAN, FAN MOTOR, AND SHROUD REMOVAL AND INSTALLATION ).
