Glove Box Removal/Installation

Special Tools Required

KTC Trim Tool Set SOJATP2014*

*Available through the Acura Tool and Equipment Program; 888-424-6857

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ) and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or service.

1. Remove the passenger's dashboard undercover (see PASSENGER'S DASHBOARD UNDERCOVER REMOVAL/INSTALLATION  ).
2. Open the glove box (A) and the document tray (B). Remove the lid (C), then remove the screws (D) and the bolt (E).

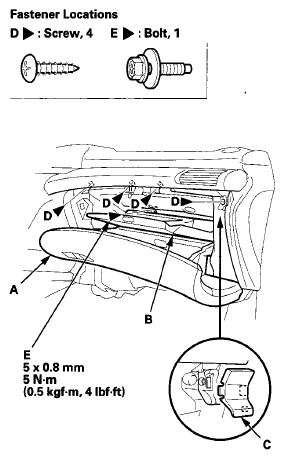

   Fig 1: Removing Screws And Bolt With Torque Specifications

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Close the glove box (A), then remove the bolts.

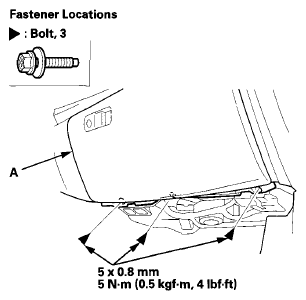

   Fig 2: Glove Box And Bolts With Torque Specifications

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Remove the glove box (A).
   1. Pull out the glove box to detach the clips.
   2. Remove the harness clip (B), and disconnect the glove box light bulb socket (C).
   3. Disconnect the trunk lid opener main switch connector (D).

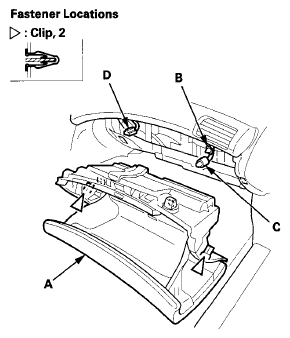

      Fig 3: Disconnecting Trunk Lid Opener Main Switch Connector

      Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. Install the box in the reverse order of removal, and note these items:
   • If the clips are damaged or stress-whitened, replace them with new ones.
   • Push the clips into place securely.
   • Make sure the connector is plugged in properly, and the bulb socket is connected securely.
