Front Center Speaker

NOTE:
  • Put on gloves to protect your hands.
  • Take care not scratch the dashboard.
  1. Remove the dashboard upper visor (A).

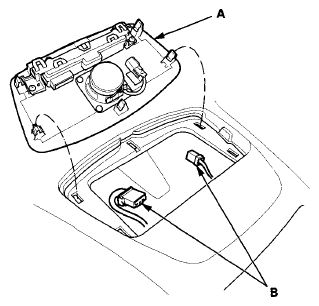

    Fig 1: Removing Dashboard Upper Visor
    G07355430Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Disconnect the connectors (B).
  3. Remove the screws, connector (A), and the front center speaker (B).

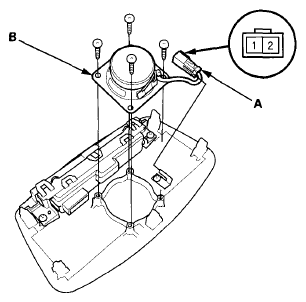

    Fig 2: Removing Screws, Connector And Front Center Speaker
    G07355431Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Measure the resistance between the terminals No. 1 and No. 2. There should be about 4 Ω.
  5. If the resistance is not as specified, replace the front center speaker.
