Component Location Index: Overview

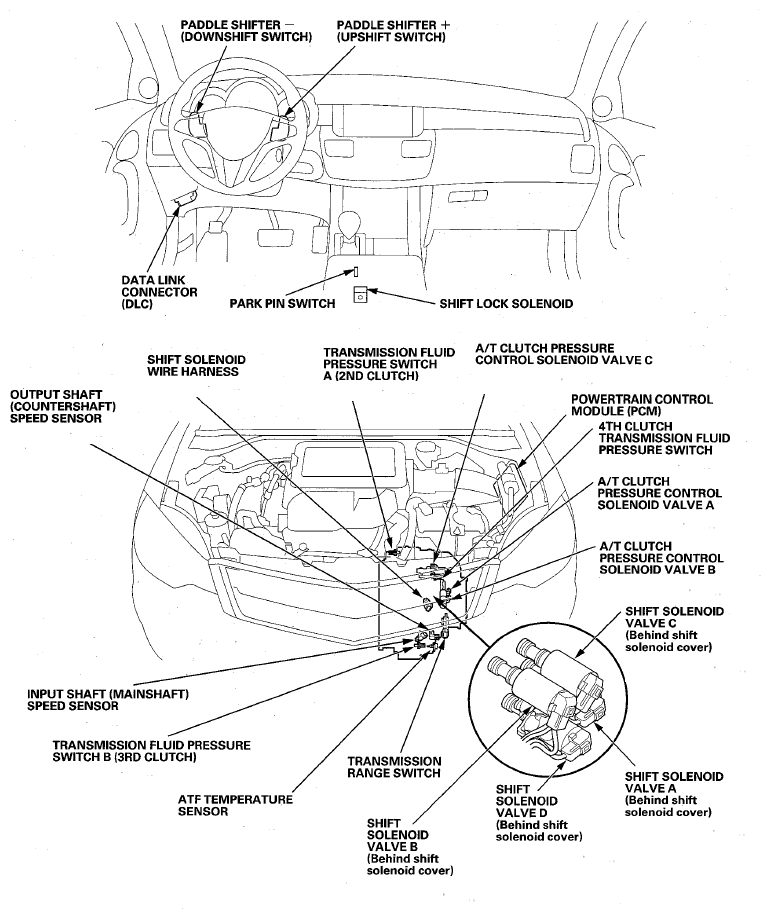

Fig 1: Automatic Transmission Components Location
G08050863Courtesy of AMERICAN HONDA MOTOR CO., INC.

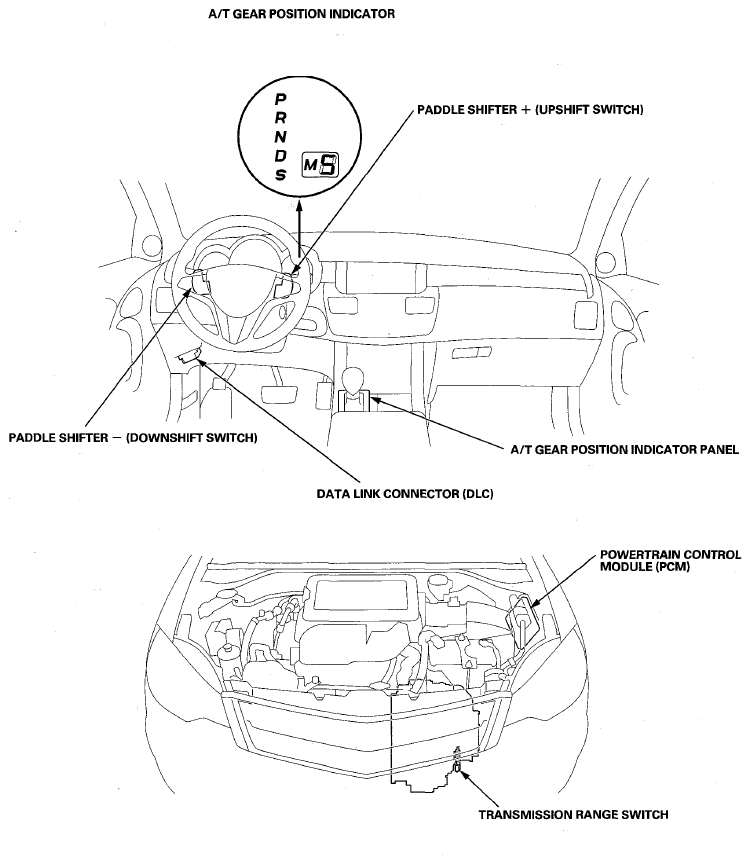

Fig 1: A/T Gear Position Indicator Related Components Locations
G08051170Courtesy of AMERICAN HONDA MOTOR CO., INC.

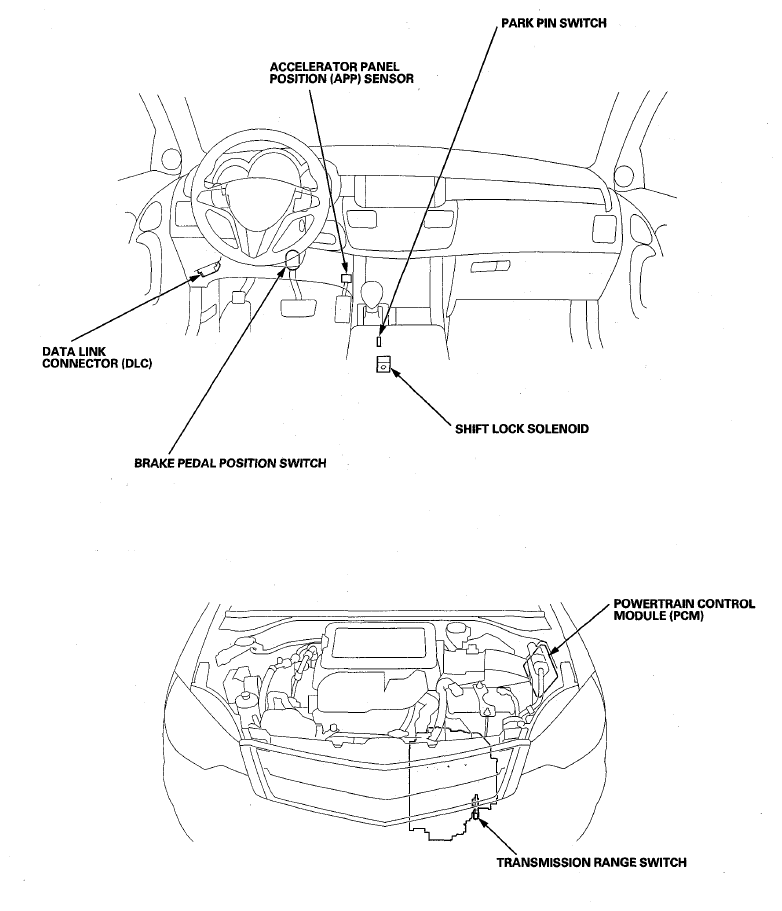

Fig 1: A/T Interlock System Components Location
G08051196Courtesy of AMERICAN HONDA MOTOR CO., INC.


Fig 1: Transfer Output Shaft Components Location
G08051433Courtesy of AMERICAN HONDA MOTOR CO., INC.
