ATF Temperature Sensor Replacement

  1. Raise the vehicle on a lift, or apply the parking brake, block the rear wheels, and raise the front of the vehicle. Make sure it is securely supported.
  2. Remove the front splash shield (see FRONT SPLASH SHIELD REPLACEMENT ).
  3. Remove the drain plug (A), and drain the automatic transmission fluid (ATF).
    Fig 1: Drain Plug And Washer With Torque Specifications
    G08051024Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Reinstall the drain plug with a new sealing washer (B).
  5. Disconnect the ATF temperature sensor connector (A), then remove the connector from the connector bracket (B).

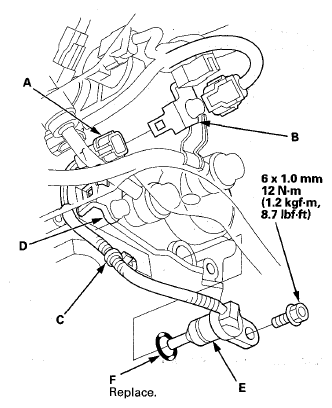

    Fig 2: ATF Temperature Sensor Connector, Connector Bracket, Harness Clamp And Bracket With Torque Specifications
    G08051025Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Remove the harness clamp (C) from its bracket (D).
  7. Remove the ATF temperature sensor (E), and replace the sensor.
  8. Install a new O-ring (F) on a new ATF temperature sensor, and install the ATF temperature sensor.
  9. Check the connector for rust, dirt, or oil, and clean or repair if necessary, then connect the connector securely.
  10. Install the harness clamp on its bracket.
  11. Refill the transmission with ATF (see step  6).
  12. Install the front splash shield (see FRONT SPLASH SHIELD REPLACEMENT ).
