Exploded View

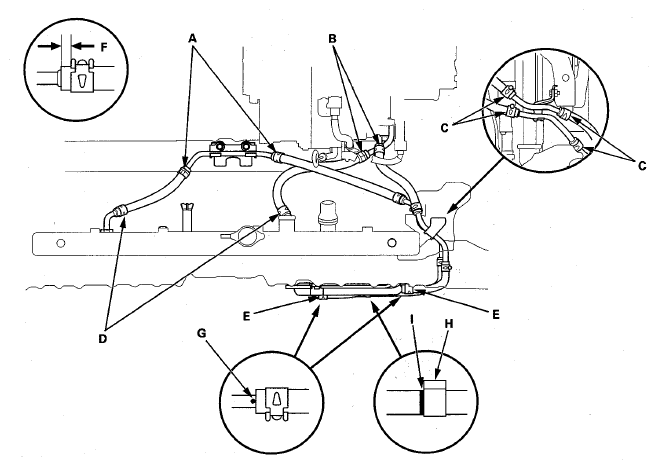

Fig 1: Exploded View Of ATF Cooler Hose

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: When installing the hose clamps, make sure not to interfere with the surrounding parts.

Install the ATF cooler hoses over the ATF cooler lines with the clips at the appropriate points in reference to the following list.

Point	Distance from Hose End to Clip (F)	Hose End Contact Point
A	6-8 mm (0.2-0.3 in)	Bulge
B
C
D	2-4 mm (0.1-0.2 in)	Bulge
E	6-8 mm (0.2-0.3 in)	White Mark (G)

Secure the ATF cooler hose with the clamp (H) at the white line (I), on the ATF cooler hose.
Refill the transmission with ATF to the proper level (see ATF LEVEL CHECK ).
