Turbocharger Boost Sensor Replacement

  1. Remove the charge air cooler cover (see step 1 under CHARGE AIR COOLER REMOVAL AND INSTALLATION ).
  2. Remove the charge air cooler cover stay (A).

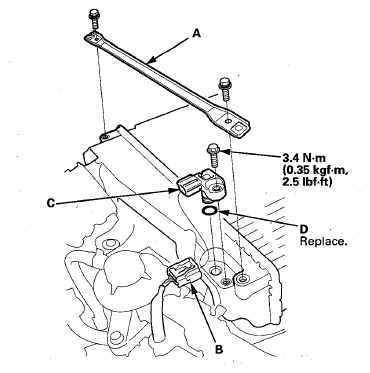

    Fig 1: Charge Air Cooler Cover Stay, Turbocharger Boost Sensor And Connector With Torque Specifications
    G08059762Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the turbocharger boost sensor connector (B).
  4. Remove the turbocharger boost sensor (C).
  5. Install the parts in the reverse order of removal with a new O-ring (D).
