Turbocharger Boost Control Solenoid Valve Replacement

  1. Remove the charge air cooler (see REMOVAL ).
  2. Disconnect the turbocharger wastegate control solenoid valve connector (A).

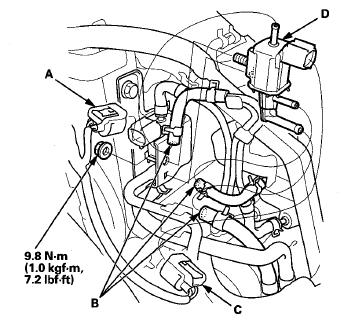

    Fig 1: Turbocharger Wastegate/Boost Control Solenoid Valve Connector And Hoses With Torque Specifications
    G08059761Courtesy of AMERICAN HONDA MOTOR CO., INC.
    NOTE: This view is from the rear of the engine compartment.
  3. Disconnect the hoses (B), and the turbocharger boost control valve connector (C).
  4. Remove the turbocharger boost control solenoid valve (D).
  5. Install the parts in the reverse order of removal.
