Fuel Line Inspection

Check the fuel system lines and hoses for damage, leaks, and deterioration. Replace any damaged parts.

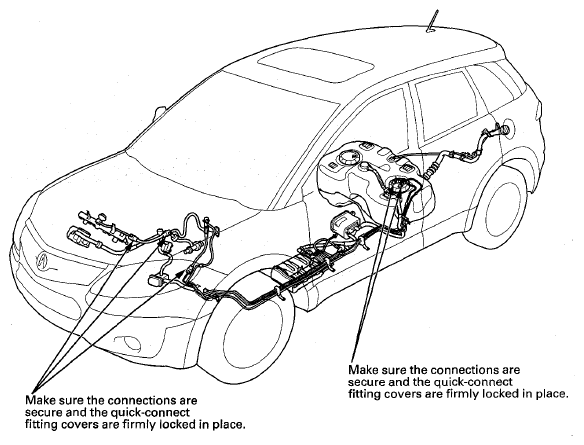

Fig 1: Identifying Fuel Lines Inspecting Areas (Quick-Connect Fitting Cover)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Check all clamps, and make sure they are properly positioned and tightened.

Fig 2: Identifying Fuel Lines Inspecting Areas (Clamps)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
