Relay And Control Unit Locations
>>
Engine Compartment
Engine Compartment

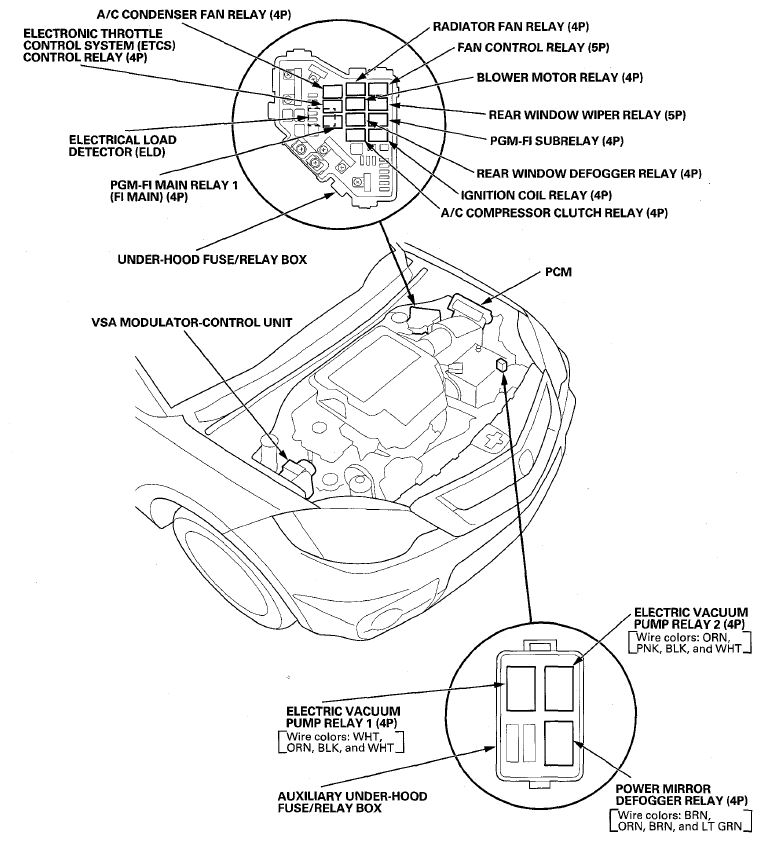

Fig 1: Relay And Control Unit Locations Of Engine Compartment
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
