Yaw Rate-Lateral Acceleration Sensor Replacement

NOTE:
  • Do not damage or drop the sensor as it is sensitive.
  • Do not use air or electric impact tools.
  1. Turn the ignition switch to LOCK (0).
  2. Remove the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
  3. Disconnect the yaw rate-lateral acceleration sensor 4P connector (A).

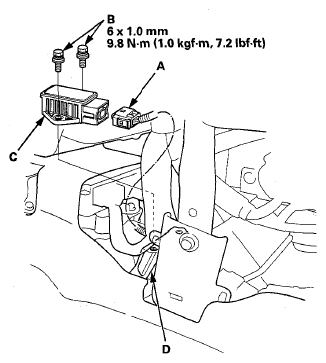

    Fig 1: Yaw Rate-Lateral Acceleration Sensor, 4P Connector And Mounting Bolts With Torque Specifications
    G08072139Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the yaw rate-lateral acceleration sensor mounting bolts (B), then remove the yaw rate-lateral acceleration sensor (C).
  5. Check for deformation in the bracket (D). If necessary replace it.
  6. Install the yaw rate-acceleration sensor in the reverse order of removal.
  7. Do the yaw rate-lateral acceleration neutral position memorization (see YAW RATE-LATERAL ACCELERATION NEUTRAL POSITION MEMORIZATION ).
