Wheel Speed Sensor Replacement: Rear

  1. Turn the ignition switch to LOCK (0).
  2. Remove the rear wheel.
  3. Disconnect the wheel speed sensor connector (A).

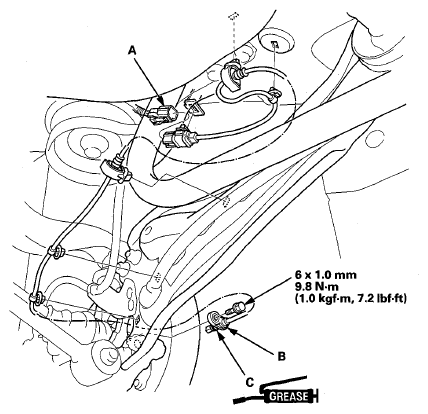

    Fig 1: Wheel Speed Sensor, Connector And O-Ring With Torque Specifications
    G08072145Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the clips, the bolt, and the wheel speed sensor (B).
  5. Install the wheel speed sensor in the reverse order of removal, and note these items:
    • Lubricate the O-ring (C) on the wheel speed sensor.
    • Do not twist the sensor wires.
    • If the wheel speed sensor comes in contact with the hub bearing unit, it is faulty.
    • Make sure there is no debris in the sensor mounting hole.
  6. Start the engine, and make sure the ABS and the VSA indicators go off.
  7. Test-drive the vehicle, and make sure the ABS and the VSA indicators do not come on.
