Wheel Speed Sensor Replacement: Front

  1. Turn the ignition switch to LOCK (0).
  2. Remove the front wheel.
  3. Release the connector holding clamps (A), then disconnect the wheel speed sensor connector (B).

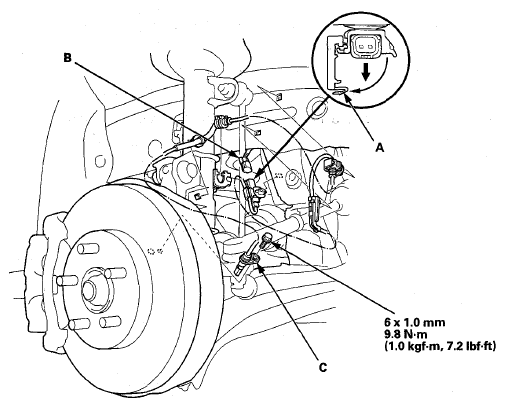

    Fig 1: Connector Holding Clamps, Wheel Speed Sensor And Connector With Torque Specifications
    G08072144Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the clips, the bolt, and the wheel speed sensor (C).
  5. Install the wheel speed sensor in the reverse order of removal, and note these items:
    • Do not twist the sensor wires.
    • If the wheel speed sensor comes in contact with the wheel bearing, it is faulty.
    • Make sure there is no debris in the sensor mounting hole sensor.
  6. Start the engine, and make sure the ABS and the VSA indicators go off.
  7. Test-drive the vehicle, and make sure the ABS and the VSA indicators do not come on.
