Home >> Acura >> 2011 >> RDX 2.3 TB1 >> Repair and Diagnosis >> Brakes >> Traction Control >> VSA System Components >> Component Location Index

Component Location Index

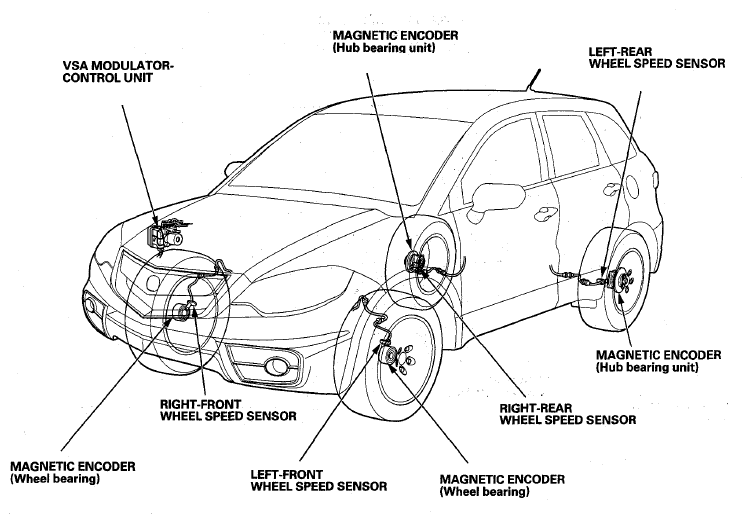

Fig 1: VSA System Components Location (1 Of 2)
G08072082Courtesy of AMERICAN HONDA MOTOR CO., INC.

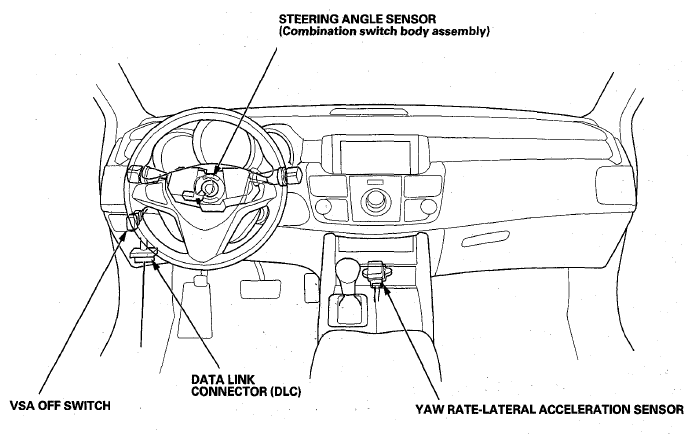

Fig 2: VSA System Components Location (2 Of 2)
G08072083Courtesy of AMERICAN HONDA MOTOR CO., INC.
