Drive Belt Inspection

  1. Inspect the belt for cracks and damage. If the belt is cracked or damaged, replace it (see DRIVE BELT REPLACEMENT  ).
  2. Check that the auto-tensioner indicator (A) is within the standard range (B) as shown. If it is out of the standard range, replace the drive belt (see DRIVE BELT REPLACEMENT  ).

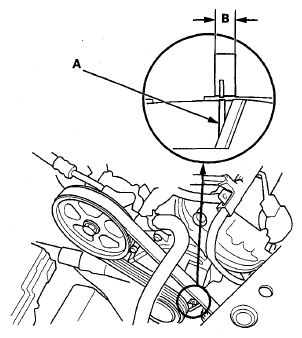

    Fig 1: Checking That Auto-Tensioner Indicator (A) Is Within Standard Range (B)
    G08051980Courtesy of AMERICAN HONDA MOTOR CO., INC.
