Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Collision Mitigation Braking System (CMBS)
>>
Circuit Diagram
Circuit Diagram

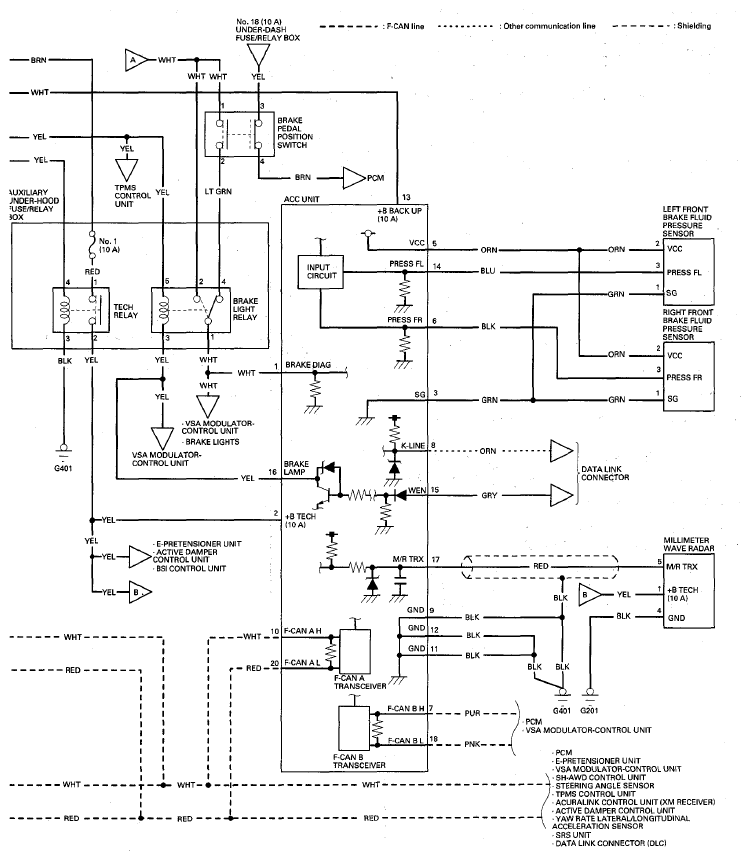

Fig 1: CMBS - Circuit Diagram (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

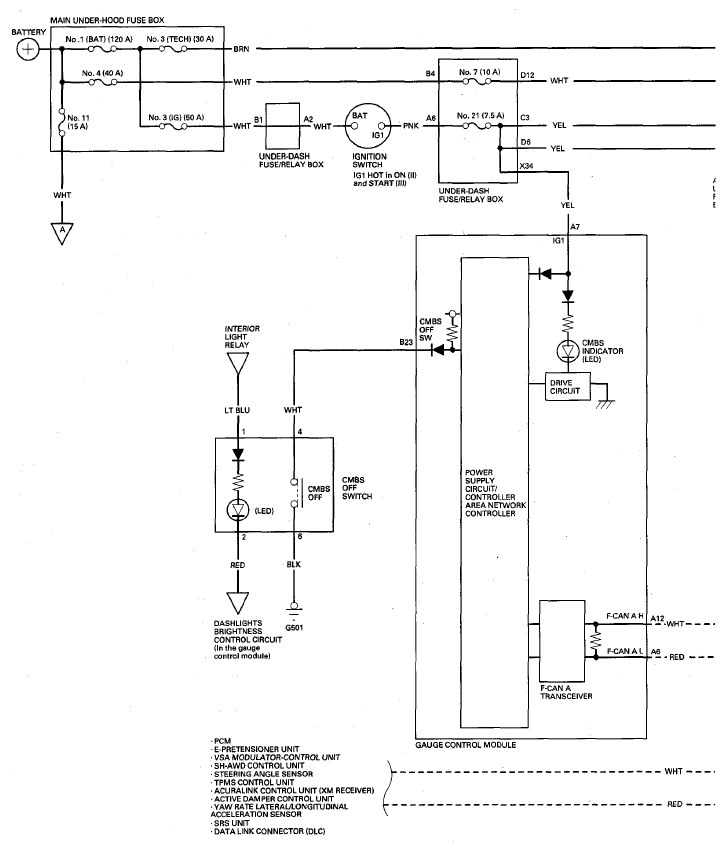

Fig 2: CMBS - Circuit Diagram (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
