Auxiliary Jack Assembly Replacement

  1. Remove the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
  2. Carefully pull out the auxiliary jack assembly (A) from center console box, then disconnect the 5P connector (B).

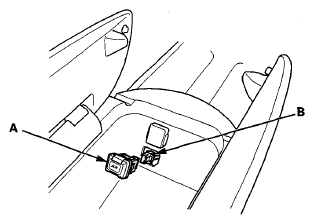

    Fig 1: Identifying Jack Assembly And 5P Connector
    G08054277Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the auxiliary jack assembly in the reverse order of removal.
