Audio-Navigation Unit

Turn the rear entertainment system ON.
- After the ignition switch is turned ON, push the REAR PWR button (A) to turn the rear system ON.
- To turn the rear system OFF, push the REAR PWR button, and to turn the whole system OFF, push the VOL button (B).

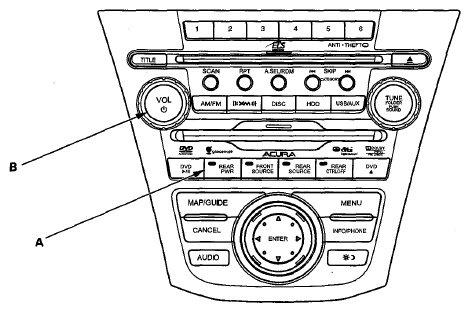

Fig 1: Identifying Rear PWR Button And Vol Button
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Using the select button.
- Front source button, indicator light ON: control of front source from audio-navigation unit.
- Rear source button, indicator light ON: control of rear source from audio-navigation unit.
- The rear source will automatically revert back to front source after 10 seconds if no operation is done.

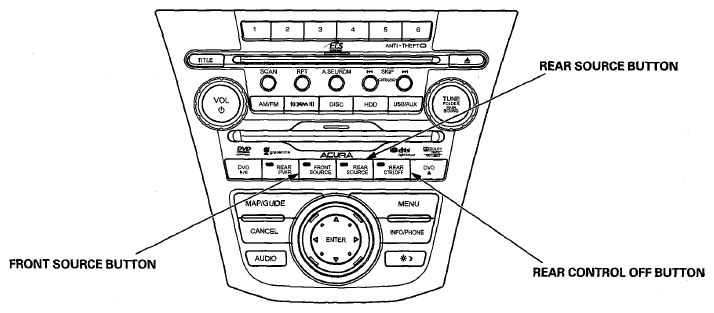

Fig 2: Identifying Rear Source, Rear Control OFF And Front Source Buttons
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Rear Control Enable/Disable.
By pushing the REAR CTRL OFF button the LED indicator will be ON and the rear seat passenger's will not be able to control the system from the remote. The rear display will show rear control OFF. Press the button again to allow control from the rear seat.
Viewing the front climate control unit display.
The front climate control unit display (A) (built into the climate control unit) indicates the status of the front and rear systems.

Fig 3: Identifying Front Climate Control Unit Display
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Rear speaker automatic OFF Function.
By turning the rear speaker OFF you can reduce the interference between the front audio source and the rear audio source (Headphone). The speaker will be turned ON/OFF automatically when the front and rear have different sources selected. When the rear speaker is in the OFF mode, the LCD display on the audio-navigation unit displays the rear speaker icon shown.

Fig 4: Identifying Audio-Navigation Unit Display
Courtesy of AMERICAN HONDA MOTOR CO., INC.
