With Navigation

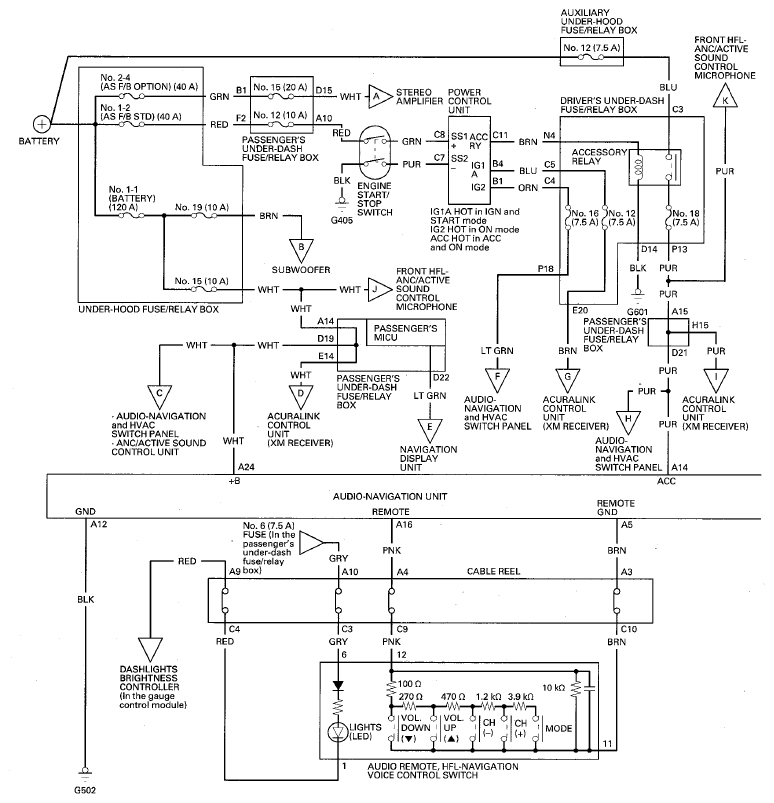

Fig 1: Audio-Navigation Unit Circuit Diagram - With Navigation (1 Of 6)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

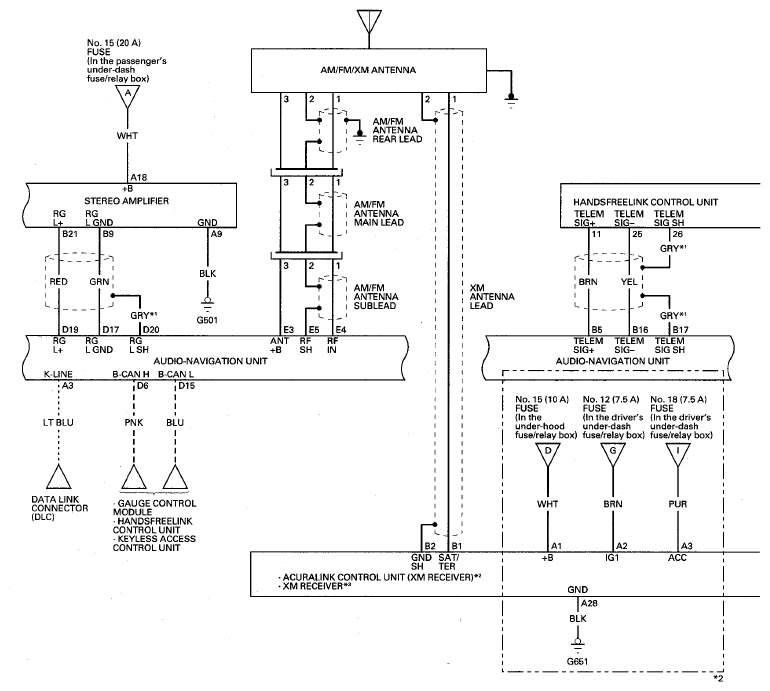

Fig 2: Audio-Navigation Unit Circuit Diagram - With Navigation (2 Of 6)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

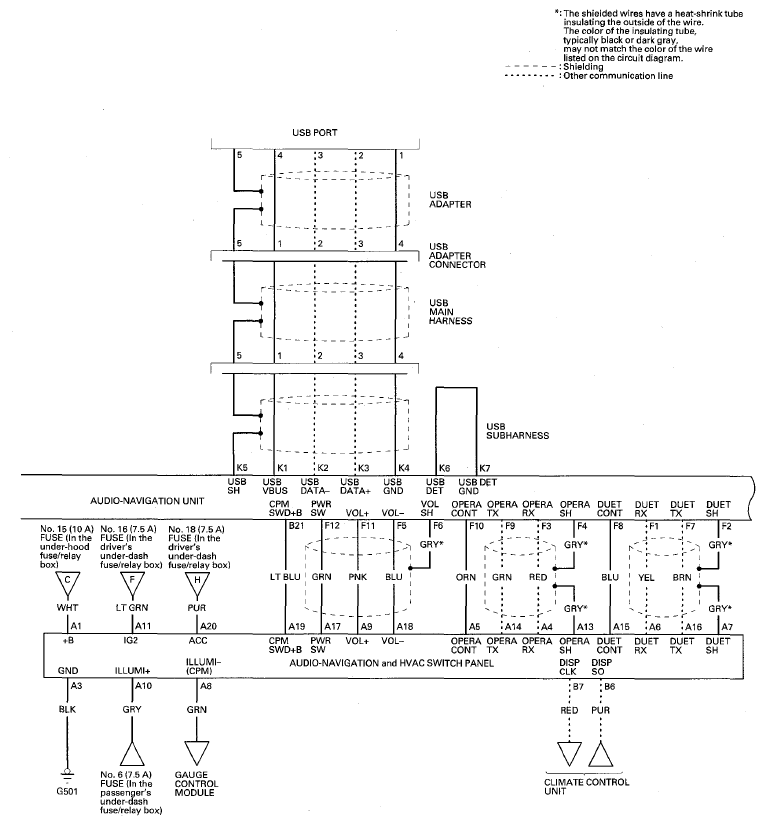

Fig 3: Audio-Navigation Unit Circuit Diagram - With Navigation (3 Of 6)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

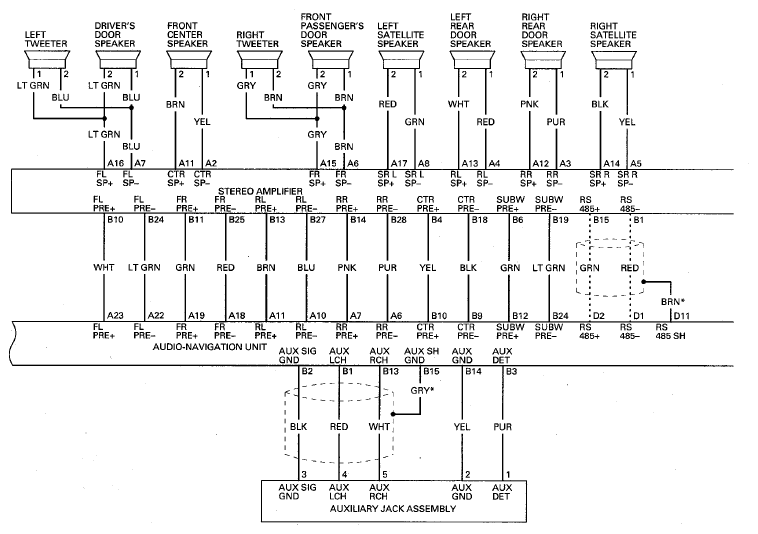

Fig 4: Audio-Navigation Unit Circuit Diagram - With Navigation (4 Of 6)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

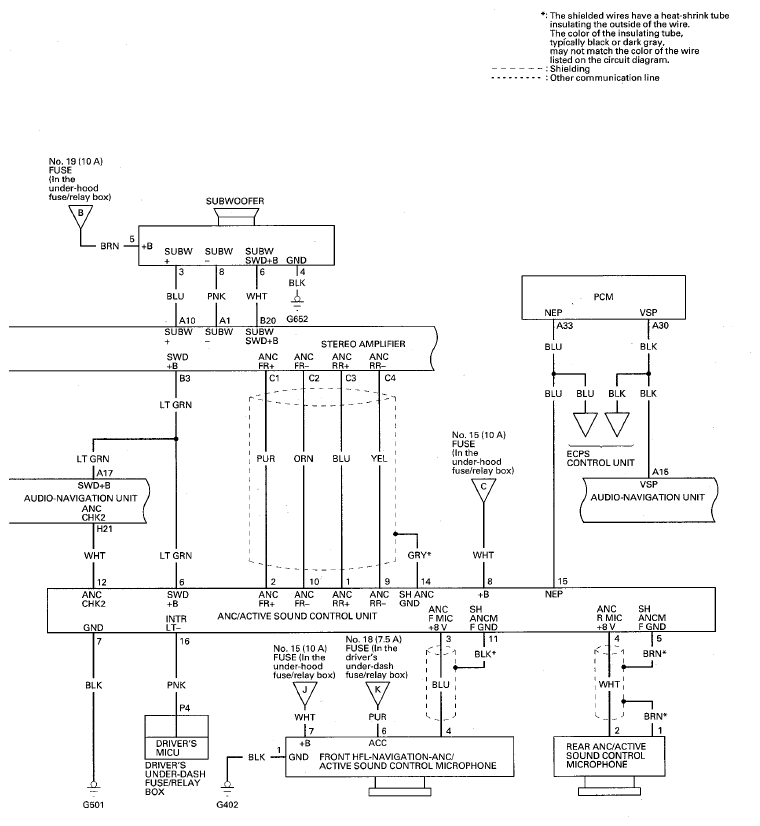

Fig 5: Audio-Navigation Unit Circuit Diagram - With Navigation (5 Of 6)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

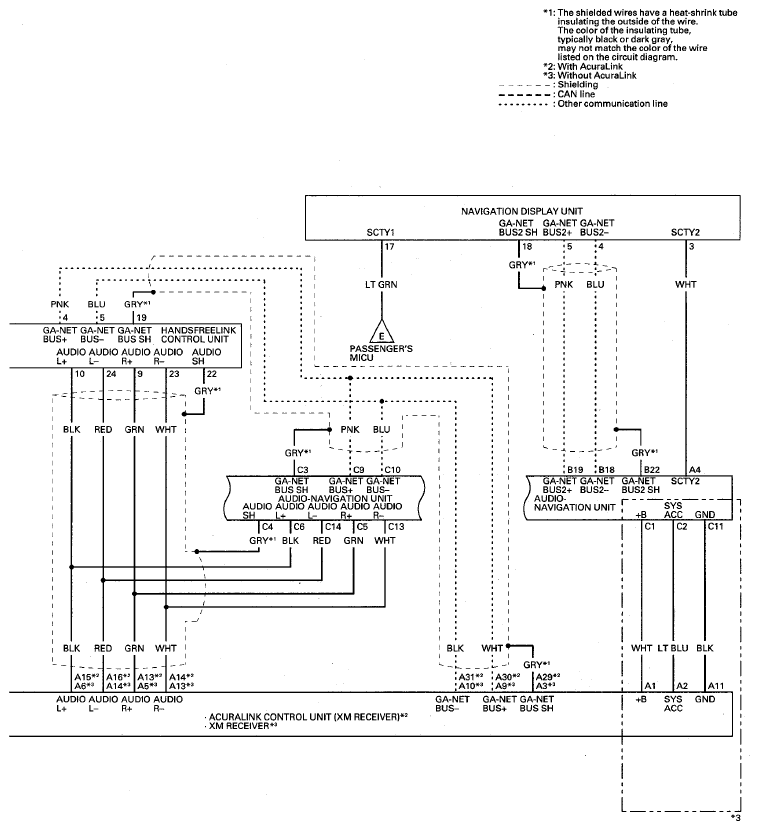

Fig 6: Audio-Navigation Unit Circuit Diagram - With Navigation (6 Of 6)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
