PCV Valve Inspection

  1. Check the PCV valve (A), the hoses (B), and the connections for leaks or restrictions.

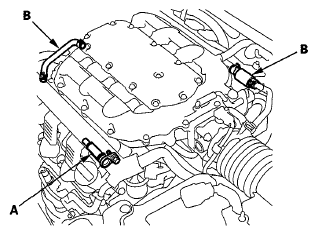

    Fig 1: Identifying PCV Valve And Hoses
    G06425455
  2. At idle, listen to the PCV valve (A) with a stethoscope as you lightly pinch the PCV hose (B) with your fingers or pliers several times. Each time the hose is pinched, the valve should click.

    If there is no clicking sound, check the PCV valve grommet for cracks or damage. If the grommet is OK, replace the PCV valve and recheck.

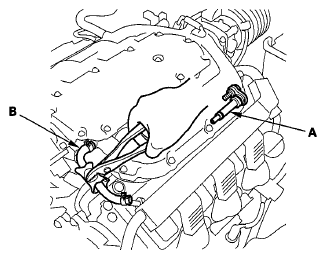

    Fig 2: Pinching PCV Hose
    G06425456
