Accelerator Pedal Module Removal and Installation: Removal

  1. Disconnect the accelerator pedal module connector (A)

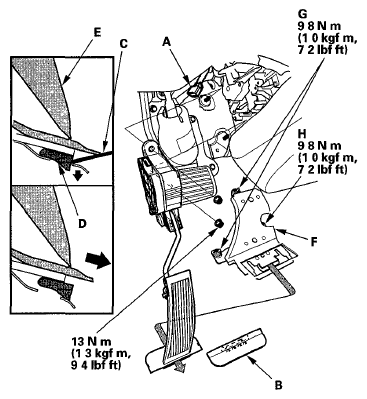

    Fig 1: Accelerator Pedal Module With Torque Specifications
    G05992434Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the clip (B)
  3. Using flat-tip screwdriver (C), push the lock (D), then remove the accelerator pedal module (E)
    NOTE:
    • The APP sensor is not available separately Do not disassemble the accelerator pedal module
    • If the pedal stop (F) is damaged, pull back the carpet, remove the nuts (G) and bolt (H), and replace the pedal stop
