Front Passenger's Power Window Switch Connector End View (View 314)
Front Passenger's Power Window Switch Connector End View (View 314)
GRY
Front Passenger's Door
On Front Passenger's Door Wire Harness

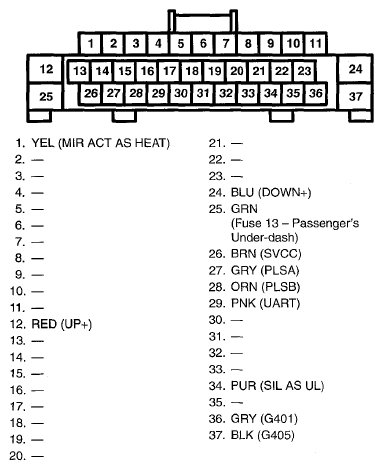

Fig 1: Front Passenger's Power Window Switch Connector Terminal (View 314)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
