At low engine speed

The rocker arm oil control solenoid is turned off by the ECM/PCM. Oil pressure from the rocker arm oil control valve does not enter the rocker shaft. The primary and secondary rocker arms are separated by a return spring and lifted by the low lift cam lobe.

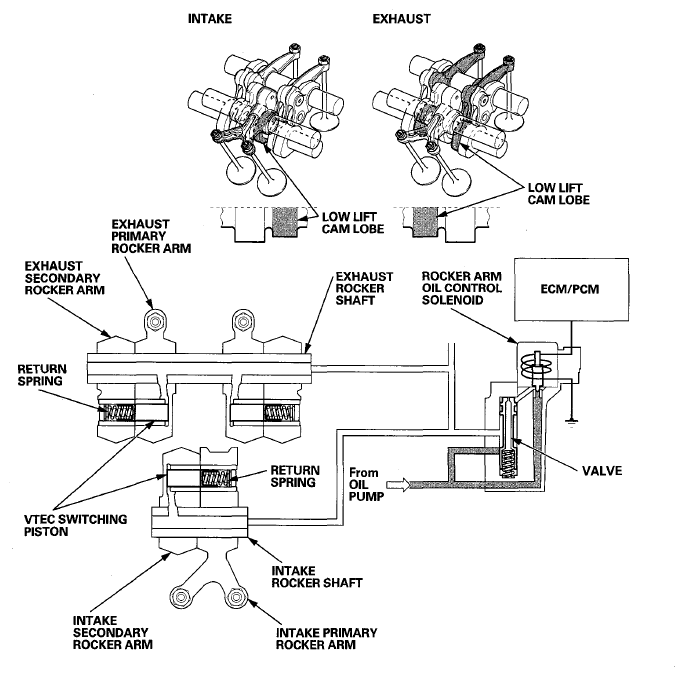

Fig 1: VTEC System Operation Diagram - Low Engine Speed (J37A4 Engine)
G06679469Courtesy of AMERICAN HONDA MOTOR CO., INC.
