Starter Removal and Installation: Installation

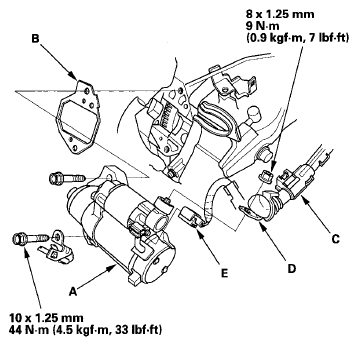

Install the starter (A) using a new gasket (B), then install the harness clamp (C), and connect the B terminal (D) and BLK/WHT wire (E). Make sure the crimped side of the B terminal faces away from the starter when you connect it.

Fig 1: Starter, Gasket, Harness Clamp, B Terminal & BLK/WHT Wire With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the vacuum hose (A), transmission dipstick (B), and vacuum line mounting bolt (C).

Fig 2: Vacuum Hose, Transmission Dipstick & Vacuum Line Mounting Bolt With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

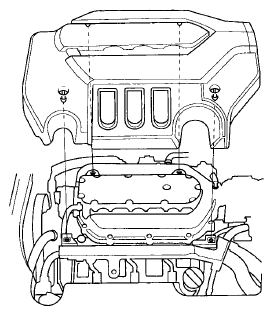

Install the engine cover.

Fig 3: Identifying Engine Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Do the battery terminal reconnection procedure (see RECONNECTION ).
Start the engine to make sure the starter works properly.
